RockJock CE-9117NL – Narrow Forged Johnny Joint 2 1/2 Inch 2.625 Inch X 0.562 Inch Ball 7/8 Inch-14 Left Hand Threaded Shank Externally Greased Each 4×4

Description

RockJock CE-9117NL – Narrow Forged Johnny Joint 2 1/2 Inch 2.625 Inch X 0.562 Inch Ball 7/8 Inch-14 Left Hand Threaded Shank Externally Greased Each 4×4

RockJock’s narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!

Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

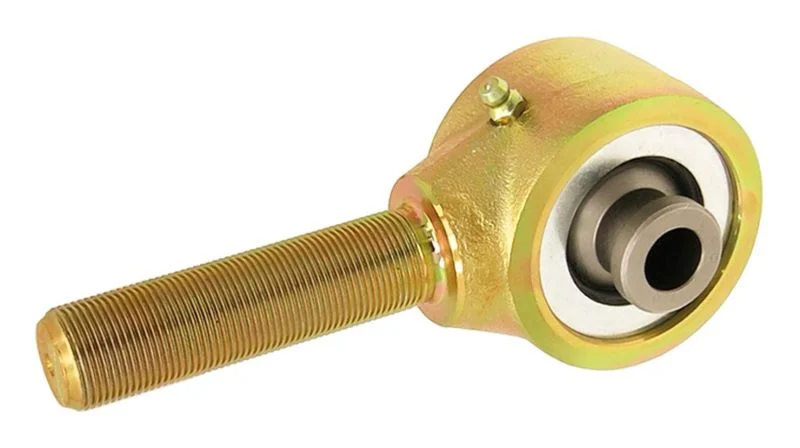

This specific joint is a 2 1/2 Inch diameter, fitted with a zerk fitting for greasing, 2 1/4 Inch of 7/8 Inch-14 left hand threads on the shank, and a 2.625 Inch mounting width ball with a .562 Inch thru bolt hole. Finished in gold zinc plating.

Details:

• Narrow Forged Johnny Joint
• 2 1/2 Inch
• 2.625 Inch X 0.562 Inch Ball
• 7/8 Inch-14 Left Hand Threaded Shank
• Externally Greased
• Each
