RockJock CE-9114-12 – Forged Johnny Joint 2 1/2 Inch 2.440 Inch X 0.515 Inch Ball 1 1/4 Inch-12 Right Hand Threaded Shank Externally Greased Each 4×4

Description

RockJock CE-9114-12 – Forged Johnny Joint 2 1/2 Inch 2.440 Inch X 0.515 Inch Ball 1 1/4 Inch-12 Right Hand Threaded Shank Externally Greased Each 4×4

RockJock’s forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!

Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.

The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

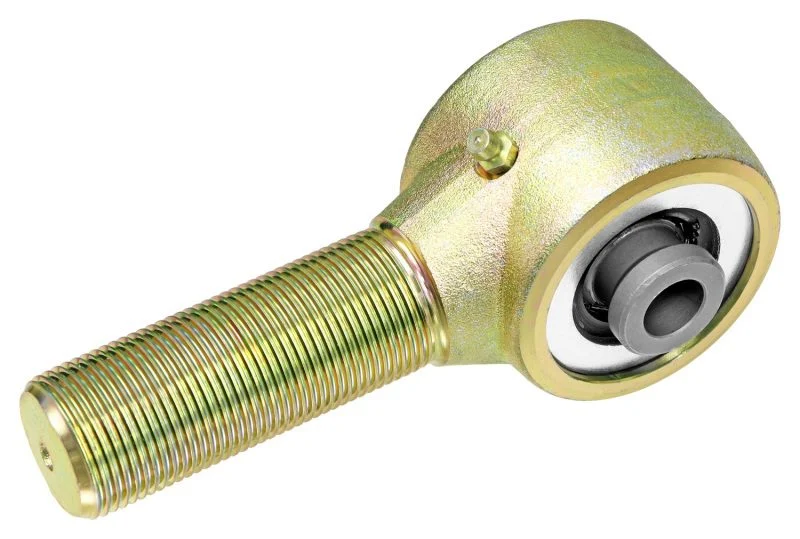

This specific joint is a 2 1/2 Inch diameter, fitted with a zerk fitting for greasing, 2 1/4 Inch of 1 1/4 Inch-12 right hand threads on the shank, and a 2.440 Inch mounting width ball with a .515 Inch thru bolt hole. Finished in gold zinc plating.

Details:

• Forged Johnny Joint
• 2 1/2 Inch
• 2.440 Inch X 0.515 Inch Ball
• 1 1/4 Inch-12 Right Hand Threaded Shank
• Externally Greased
• Each
