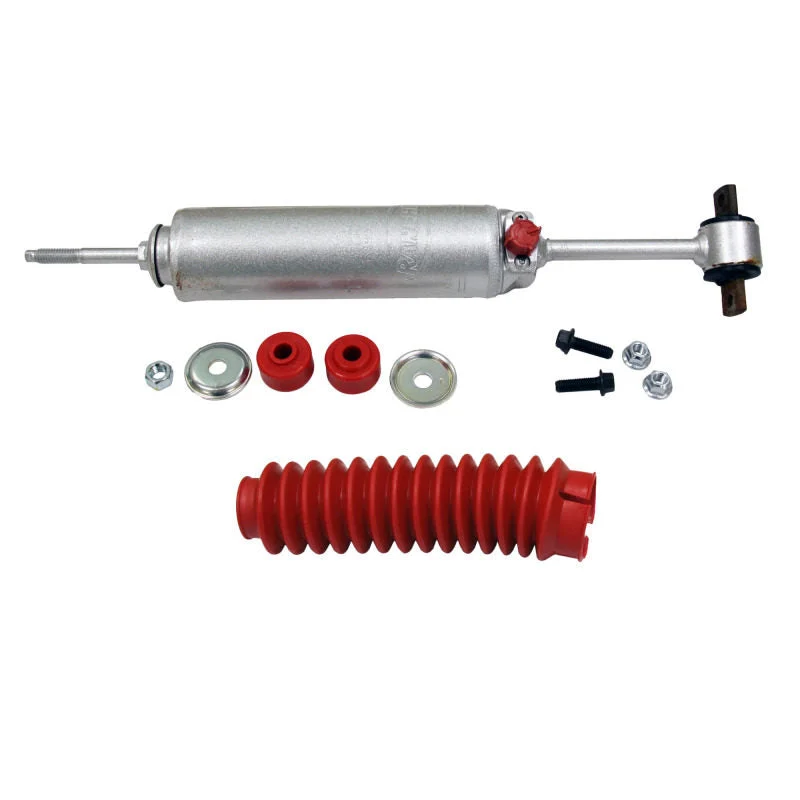

Rancho RS999229 – 95-03 Ford Explorer Front RS9000XL Shock

Description

Rancho RS999229 – 95-03 Ford Explorer Front RS9000XL Shock

Rancho RS9000XL RS999229 Suspension Shock Absorber for Ford Ranger

Get premium control and performance with Rancho RS9000™XL shocks. Recognized as the first nine-position manually adjustable ride control series in the off-road market, RS9000XL shocks are ideal for on- and off-road use, towing and more.

• NINE LEVELS OF PERFORMANCE — Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
• DESIGNED FOR HARDWORKING VEHICLES — Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
• INDUSTRY FIRST — Recognized as the first nine-position manually adjustable shock series in the off-road market
• REDUCES FADE — Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
• STRONG AND DURABLE — Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
• HANDLES EXTREME TEMPERATURE CHANGES — Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
• SMOOTH PERFORMANCE — Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
• BUILT TO LAST — Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
• BUY WITH CONFIDENCE — Comes with Rancho’s Limited Lifetime Warranty

Mounting Hardware Included: YesParts Pack(s): P01192,P00941Body Diameter: 55.4Body Diameter: 2.18Cylinder Outside Diameter: 2.18Cylinder Outside Diameter: 55.4Body Material: SteelCylinder Material: SteelBody Color: SilverCylinder Color: SilverColor: SilverFinish: PaintedCylinder Finish: PaintedBoot Included: YesDust Shield Included: YesDust Shield Diameter: 75.9Dust Shield Diameter: 2.99Dust Shield Material: RubberDust Shield Color: RedRod Diameter: 0.622Rod Diameter: 15.8Shaft Material: NitrocarburizedShock Absorber Bore Size: 32Shock Absorber Bore Size: 1.26Includes Bump Stop: NoInternal Rebound Bumper: NoInternal Rebound Spring: NoHydraulic Lockout: NoInternal Construction Type: Tri TubeGrade Type: PerformanceType: TelescopicAdjustable Damping: YesActive or Passive Suspension: PassiveAdjustable Compression: YesAdjustable Rebound: YesDamping Adjustment Type: ManualValving Type: ProgressiveSelf-Leveling: NoAdjustable Ride Height: NoMaximum Ride Height Lowering Distance: 0Maximum Ride Height Raising Distance: 0Air Adjustable: NoAir Ride Suspension: NoBladder(s) Included: NoBladder Sleeve(s) Included: NoBladder Heavy Duty Crimping Rings Included: NoNew Or Remanufactured: NewCoil Over Springs Included: NoBearing Plate Included: NoSpring Included: NoCoil Spring Insulator(s) Included: NoSpring Isolators Included: NoSpring Seat Included: NoRemote Reservoir: NoStrut Mount Insulator(s) Included: NoCompressed Length: 14.06Compressed Length: 357.1Extended Length: 18.01Extended Length: 457.5Travel Length: 100.3Travel Length: 3.95Shock Stroke: 3.95Shock Stroke: 100.3Lower Mount Type: Cross Pin Mount – Closed Ended, 5/16″ Hole ID (Both Ends) X 2.1/2″ Pin Length (Hole Center to Center)Lower Mount Code: XP5Upper Mount Type: Stem Mount – 2.3/8″ Stem Length X 3/8″-16 Thread PitchUpper Mount Code: S4Shock Absorber Rod End Measuring Point: Center of Cross PinShock Absorber Body End Measuring Point: Base of StemGas Charged: Yes
