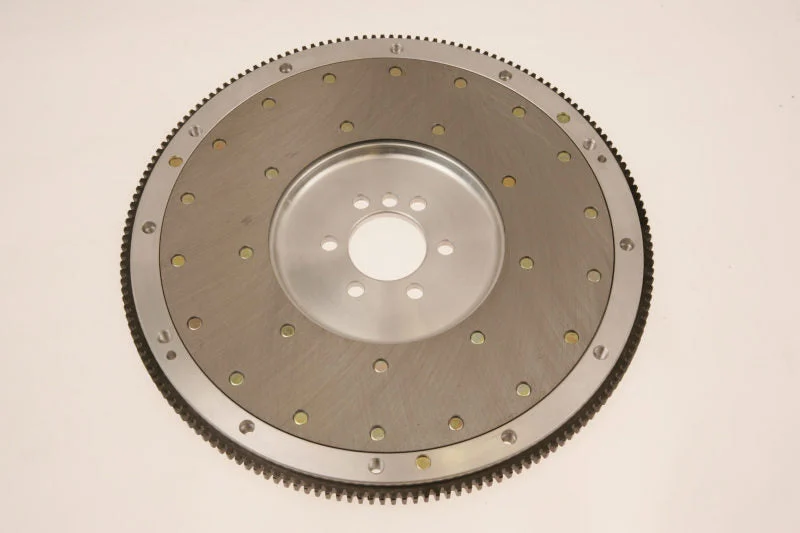

Mcleod 563406 – Flywheel Aluminum Ford 4.6/5.4L MOD Motor 6Bolt Crank Muli-Drilled 164

Description

Mcleod 563406 – Flywheel Aluminum Ford 4.6/5.4L MOD Motor 6Bolt Crank Muli-Drilled 164

Flywheel – 164 Tooth – 15 lbs – SFI 1.1 – Aluminum – Internal Balance – Ford Modular – Each

ALUMINUM FLYWHEEL FORD 96-04 4.6L McLeod aluminum flywheel with multiple clutch patterns and replaceable friction surface. Fits 6 bolt crank only.

McLeod Aluminum Flywheels are ideal for numerous applications such as supercharged or turbocharged engines. These flywheels are ideal for higher horsepower engines and combinations that achieve rapid RPM levels. McLeod Aluminum Flywheels are CNC machined from 6061 T6 aluminum and come with a replaceable steel friction plate and 1045 steel hardened ring gear.

• •Billet Aluminum 6060-T6.r•1045 Steel Hardened Ring Gear.r•SFI rated.

Make: FordFlywheel Material: Billet aluminumMarine Use: NoReplaceable Friction Surface: YesEngine Balance: InternalQuantity: Sold individually.Ring Gear Tooth Quantity: 164-toothSFI 1.1 Approved: YesCrankshaft to Flywheel Bolt Quantity: 6-boltDisc Diameter (in.): 10.500/11.000 in.Engine: 1991-2010 4.6L 6 Bolt CrankNotes: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.Pressure Plate Style: DiaphragmWeight: 15.000 lbs.
