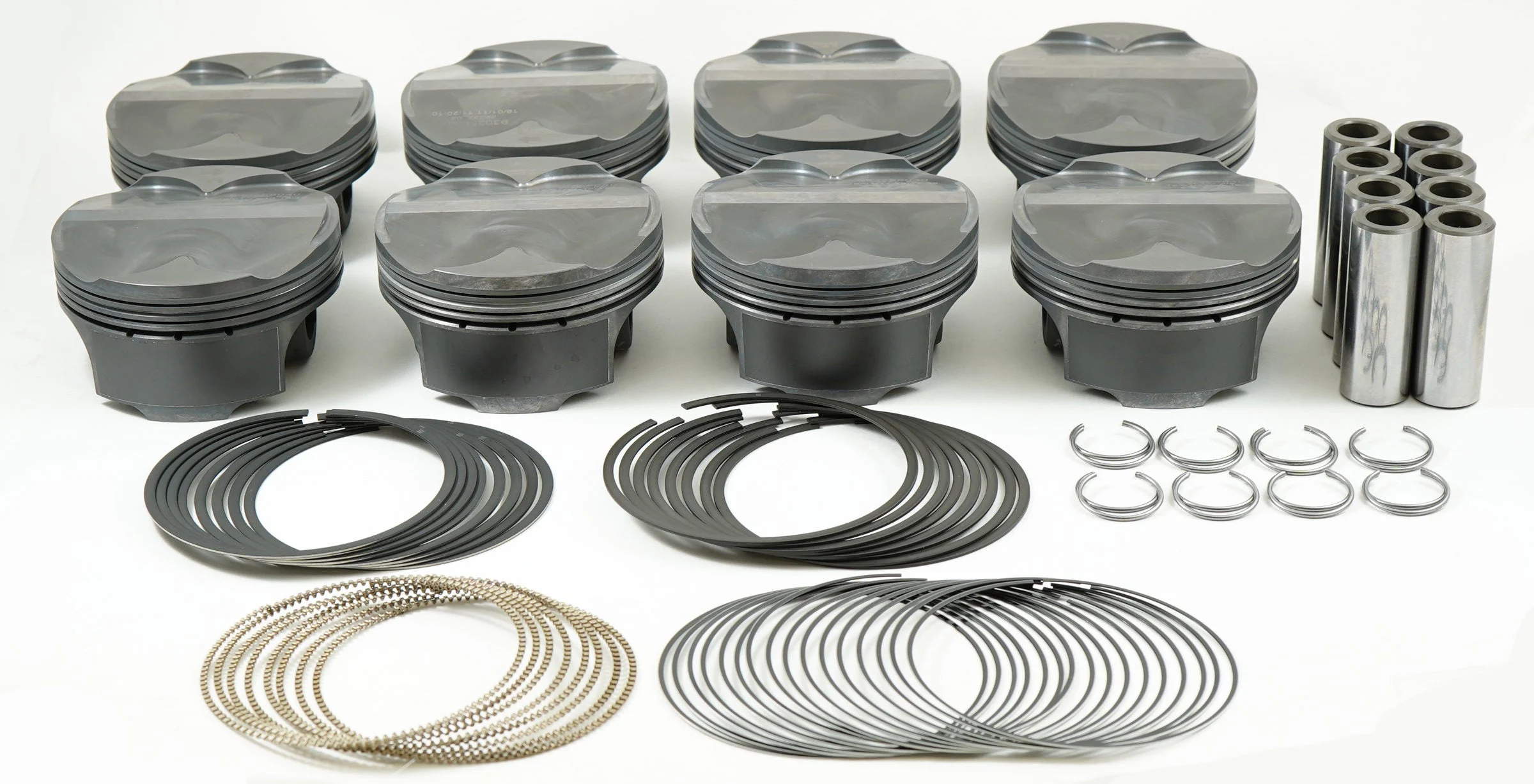

Mahle Motorsport 930134040 – Mahle MS Piston Set SBF 304ci 3.640in Bore 3.65in Stroke 5.933in Rod .866 Pin -5cc 10.0 CR Set of 8

Description

Mahle Motorsport 930134040 – Mahle MS Piston Set SBF 304ci 3.640in Bore 3.65in Stroke 5.933in Rod .866 Pin -5cc 10.0 CR Set of 8

Piston (set) – FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO

304cid 3.640 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-4.5cc,386g,10.1CR, M142P

Piston Mass: 386gPins Included: YPin Style: FloatingClips Included: YPin Material: SteelPin Mass: 118gPin Length: 61.1mmPin Diameter: 22.0mmPackage Quantity: Sold as a set of 8OCR Thickness: 2.0mmOCR Tension: StandardOCR Material: Chrome plated stainless steelLCR Thickness: 1.0mmLCR Material: 9254 SteelLCR Coating: PhosphateFile Fit: YCrown Volume: -4.5ccUCR Thickness: 1.0mmClip Style: Round WirePin Wall Thickness: 0.177UCR Material: 9254 SteelUCR Coating: HV385Rings Included: YPiston Style: Dish, w/ 4 valve reliefsPiston Ring Thickness: 1.0mm, 1.0mm, 2.0mmPiston Material: Forged, M142P
