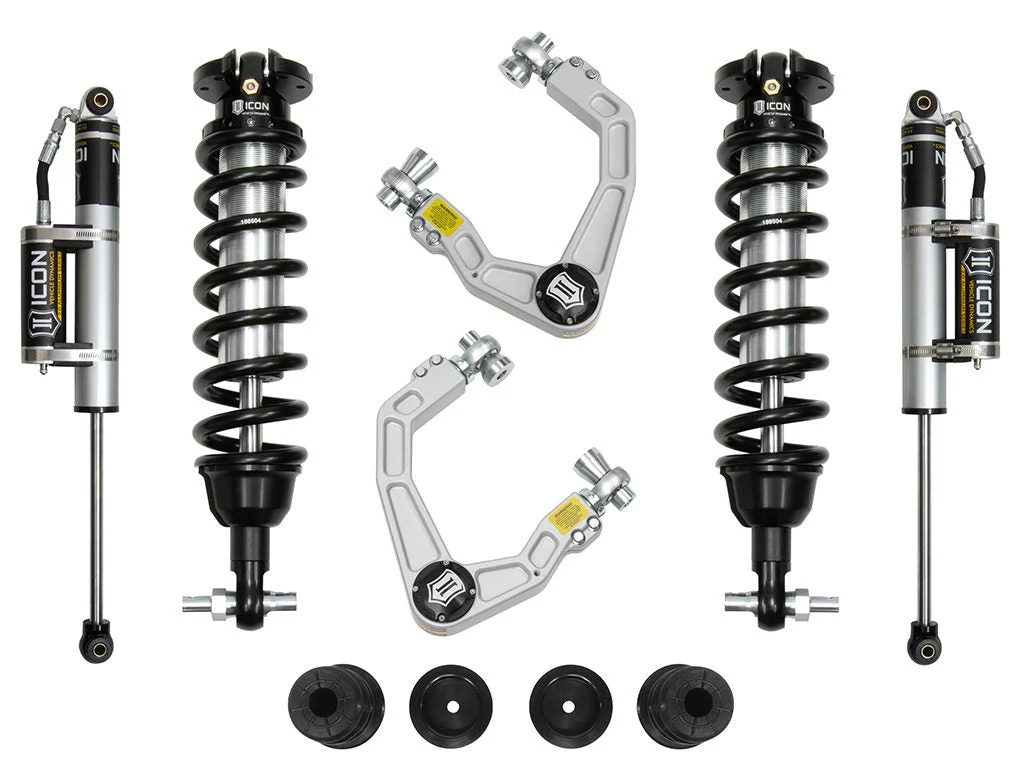

Icon K93203A – 19-21 Ford Ranger 0-3.5in Stage 3 Suspension System w/ Billet UCA Alum Knuckle
19-21 FORD RANGER 0-3.5″ STAGE 3 SUSPENSION SYSTEM W BILLET UCA AL KNUCKLE
ICON complete suspension systems lift your Ford Ranger while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
ICON Vehicle Dynamics 2019-2021 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 3 (Billet) system includes vehicle-specific tuned, extended travel 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. The included ICON billet aluminum upper control arm kit is designed to improve the overall suspension performance with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the ICON Delta Joint allows for full bump and extended droop travel of the front suspension while eliminating bind. ICON 2.0 Aluminum Series monotube remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear while the included foam bump stop kit increases rear end compliance.. The ICON Vehicle Dynamics 2019-2021 Ford Ranger Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Height-adjustable coilovers provide a range of 0-3.5” of front lift height
- Fits 2WD & 4WD applications
- Increased lift height allows for fitment of larger and more aggressive tires
- 35% increase in front wheel travel over stock
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- Corrosion resistant anodized shock body with 5/8″ shaft (2.0 Aluminum Series shocks)
- Corrosion resistant CAD plated shock body with 7/8″ shaft (2.5 Series coilovers)
- FK Rod End bearings provide extended longevity and minimal deflection
- Shocks are fully rebuildable and revalvable
- ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
- CNC machined 6061 billet aluminum upper control arms allow for on-vehicle camber and caster adjustment
- Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
- Delta Joint ball joints carry ICON’s exclusive 5 year limited warranty
- Direct bolt-in design makes for a simple and straightforward installation
- Lifetime guarantee against ICON fabricated component and coil spring breakage or manufacturer defect
Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Add-On Part: 614700 – 2.0 SHOCK BOOT KIT (EACH)Add-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITBushings Included: YesCoils Quantity Front: 2Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift Front: 3.5Minimum Lift Front: 0Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33″x11.25″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 6.00” Backspace / 25mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdd-On Part: 198001 – BILLET SPANNER WRENCH KIT
