Icon K93162 – 21-23 Ford F150 Tremor 4WD 2.5-3in Stage 2 Suspension System w/ Billet UCA

Description

Icon K93162 – 21-23 Ford F150 Tremor 4WD 2.5-3in Stage 2 Suspension System w/ Billet UCA

21-24 FORD F150 TREMOR 4WD 2.5-3″ STAGE 2 SUSPENSION SYSTEM W BILLET UCA

ICON suspension systems lift your Ford F-150 Tremor while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

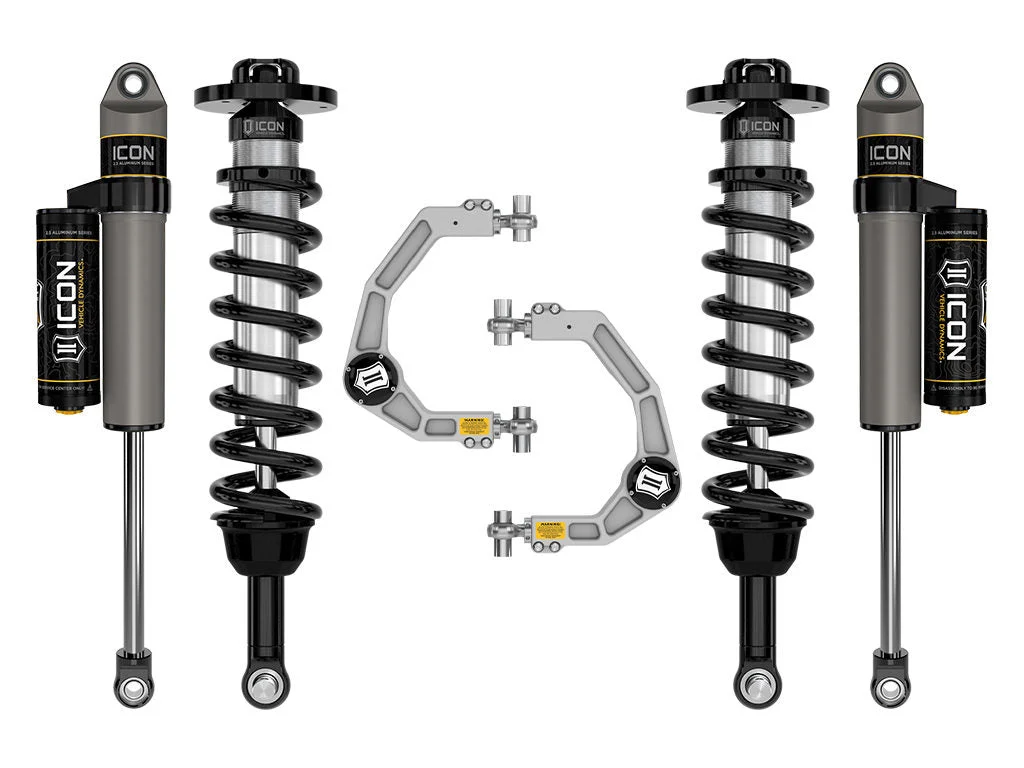

ICON Vehicle Dynamics 2021-2024 Ford F-150 Tremor suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks in a F-150 Tremor specific length for a 20% increase in front wheel travel over stock. These coilovers feature internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 2.5-3” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Billet aluminum Delta Joint PRO upper control arms on the F-150 Tremor not only add strength and durability, but help retain factory alignment spec range, offer caster/camber adjustment, and allow for the extra lift height this system provides. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving and offer increased damping and head dissipation, balancing the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2024 F-150 Tremor Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Adjustable coilovers in F-150 Tremor specific length offer 2.5-3″ of front lift height over stock
• Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
• 20% increase in wheel travel and improved ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8″ hardened chromed steel shafts
• 6061 Aircraft grade aluminum CNC machined components
• 100% Bolt-on system – no drilling, cutting, or welding necessary for install

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)Add-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 611071 – 21-25 F150 DYNAMIC HEADLAMP KITAdd-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdjustable Compression: NoAdjustable Control Arm: YesAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2Coil Spring End 1 Type: ClosedCoil Spring End 2 Type: ClosedCoil Spring Material: SteelCoils Quantity Front: 2Front Reservoir Style: InternalFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3Maximum Lift Front: 3Maximum Lift Height Front: 3Minimum Lift Front: 2.5Mounting Hardware Included: YesOEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.Rear Reservoir Style: PiggybackRear Shock Body Diameter: 2.5Recommended Aftermarket Tires: 34″ x 12.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25″ Backspace / 6mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625″ Backspace / 16mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
