Icon K73072T – 19-23 GM 1500 2.38-3.75in Stage 2 EXP Suspension System w/ Tubular UCA

Description

Icon K73072T – 19-23 GM 1500 2.38-3.75in Stage 2 EXP Suspension System w/ Tubular UCA

19-23 GM 1500 2.38-3.75″ STAGE 2 EXP SUSPENSION SYSTEM W TUBULAR UCA

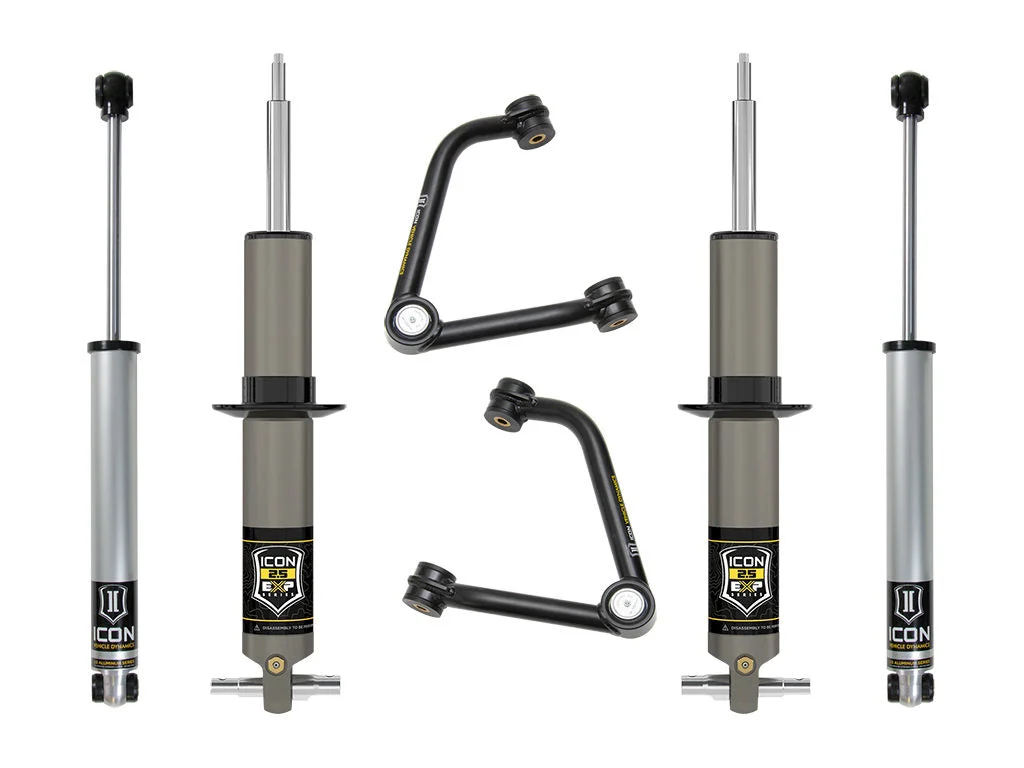

Stage 2 includes a pair of 2.5 EXP Series coilovers for 2.375-3.75” of front lift, improved performance, and 35” tire fitment. Tubular UCAs improve alignment and 2.0 Series rear shocks to balance the tuning from front to rear.

The ICON Vehicle Dynamics Stage 2 EXP complete suspension system for the 2019-2023 GM 1500 pickup builds on ICON’s 2.5 EXP Shock Kit with the addition of billet front upper control arms, providing proper alignment at any ride height, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35″ tires. This system features the innovative new 2.5 EXP series coilover shocks along with our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.

• Vehicle specific design for 2019-2026 GM 1500 pickups
• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
• Adjustable front ride heights from 2.375-3.75” of front lift over stock with the use of snap ring (lift heights vary slightly depending on trim/engine)
• One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
• 7/8” diameter induction hardened, chrome plated shock shaft with inverted shaft-up design
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature ICON’s Patented Delta Joint (U.S. Patent No. 10,731,700)
• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
• CNC machined 6061 aluminum components with a black anodized finish
• All ICON shock absorbers are fully rebuildable and re-tunable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 191011 – TUBULAR UCA BILLET CAP SETAdd-On Part: 71021 – 19-26 GM ARC ELECTRONIC SHOCK SIMULATORAdd-On Part: 71022 – 19-26 GM ARC RIDE HEIGHT SIMULATORAdd-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 191012 – UCA CAP ADHESIVE KIT – DELTA JOINT/UNIBALLAdjustable Compression: NoAdjustable Control Arm: NoAdjustable Damping: NoBushings Included: YesFront Reservoir Style: InternalFront Shock Body Diameter: 2.5Grade Type: PerformanceMaximum Lift: 3.75Maximum Lift Front: 3.75Maximum Lift Height Front: 3.75Minimum Lift Front: 2.375Mounting Hardware Included: YesRear Reservoir Style: InternalRear Shock Body Diameter: 2Shocks Included: Yes
