Description

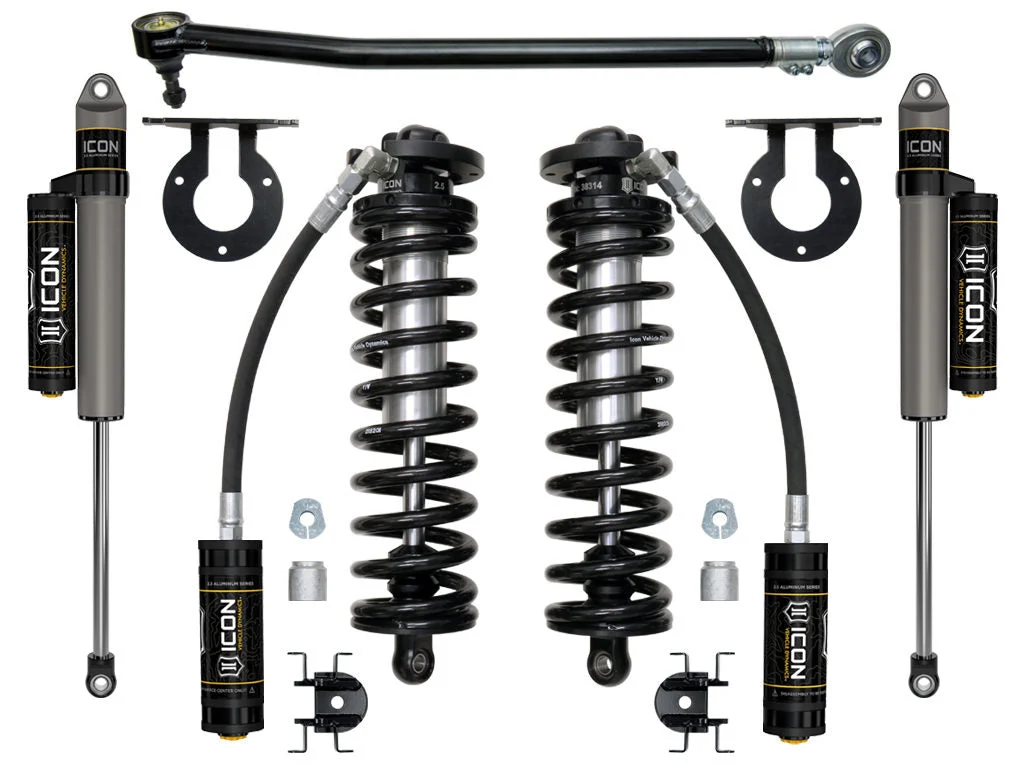

Icon K63143 – 2017+ Ford F-250/F-350 2.5-3in Stage 3 Coilover Conversion System
17-23 FORD F-250/F-350 2.5-3″ STAGE 3 COILOVER CONVERSION SYSTEM
ICON 2.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
ICON’s 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2023 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5″ Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line – meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Rear 2.5 Aluminum Series piggyback shocks feature one-piece impact extruded aluminum cylinders that offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
- FK Rod End bearings for extended longevity and minimal deflection
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers provide 2.5-3″ or 3.25-3.75″ of lift, depending on year model of truck
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
- Rear shocks feature anodized, one-piece impact extruded aluminum shock bodies
- Eibach coil springs guaranteed for life against sagging or breakage
Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.25” Backspace / 6mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdd-On Part: 64039 – 08-25 FSD TRACK BAR BUMP STEER BRACKET KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: NOCoil Quantity Front: 2Coil Spring Color: BlackCoil Spring Material: SteelCoils Quantity Front: 2Front Reservoir Style: RemoteFront Shock Body Diameter: 2.5Front Spring Rate Type: Progressive Dual RateGrade Type: PerformanceMaximum Lift: 3Maximum Lift Front: 3Maximum Lift Height Front: 3.75Minimum Lift Front: 2.5Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: PiggybackRear Shock Body Diameter: 2.5Recommended Aftermarket Tires: 35″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25” Backspace / 6mm Offset
