Description

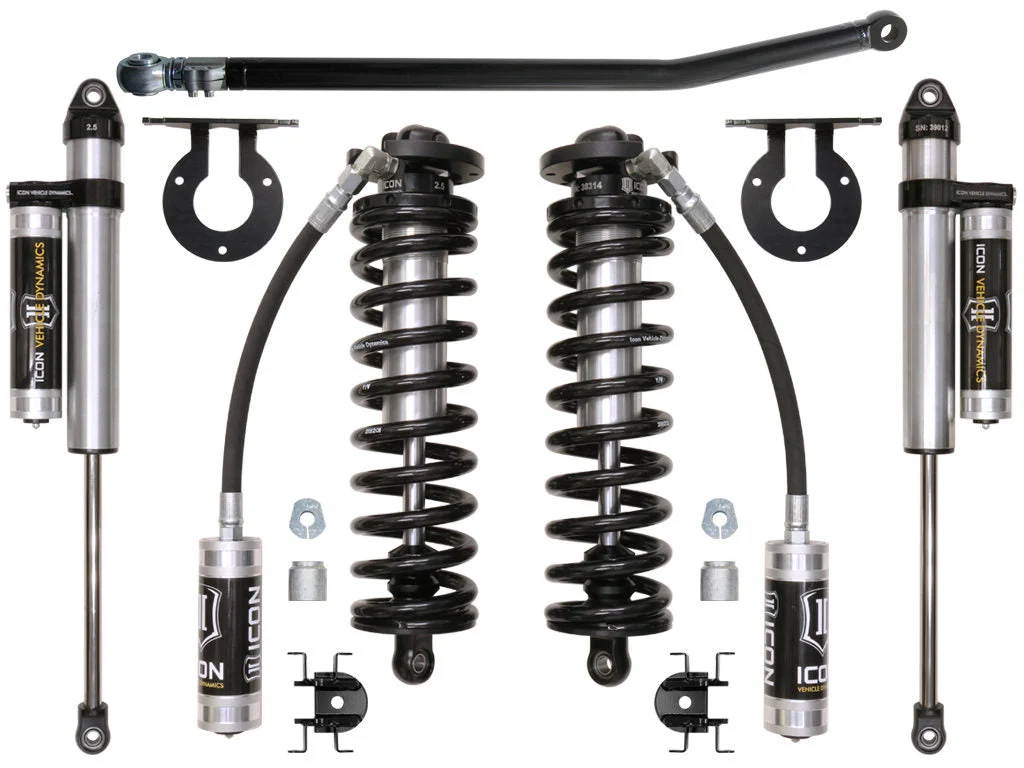

Icon K63103 – 05-16 Ford F-250/F-350 2.5-3in Stage 3 Coilover Conversion System
05-16 FORD F-250/F-350 2.5-3″ STAGE 3 COILOVER CONVERSION SYSTEM
2005-2016 FORD F-250/F-350 2.5-3″ LIFT STAGE 3 COILOVER CONVERSION SYSTEM
ICON’s 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2016 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5″ Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line – meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Rear 2.5 Aluminum Series piggyback shocks feature one-piece impact extruded aluminum cylinders that offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
- FK Rod End bearings for extended longevity and minimal deflection
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers (2.5-3″)
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock body with 7/8″ shaft
- Rear shocks feature anodized, one-piece impact extruded aluminum shock bodies
- Eibach coil springs guaranteed for life against sagging or breakage
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 64039 – 08-25 FSD TRACK BAR BUMP STEER BRACKET KITAdd-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITBushings Included: NOCoils Quantity Front: 2Grade Type: PerformanceMaximum Lift: 3Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25” Backspace / 6mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.25” Backspace / 6mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
