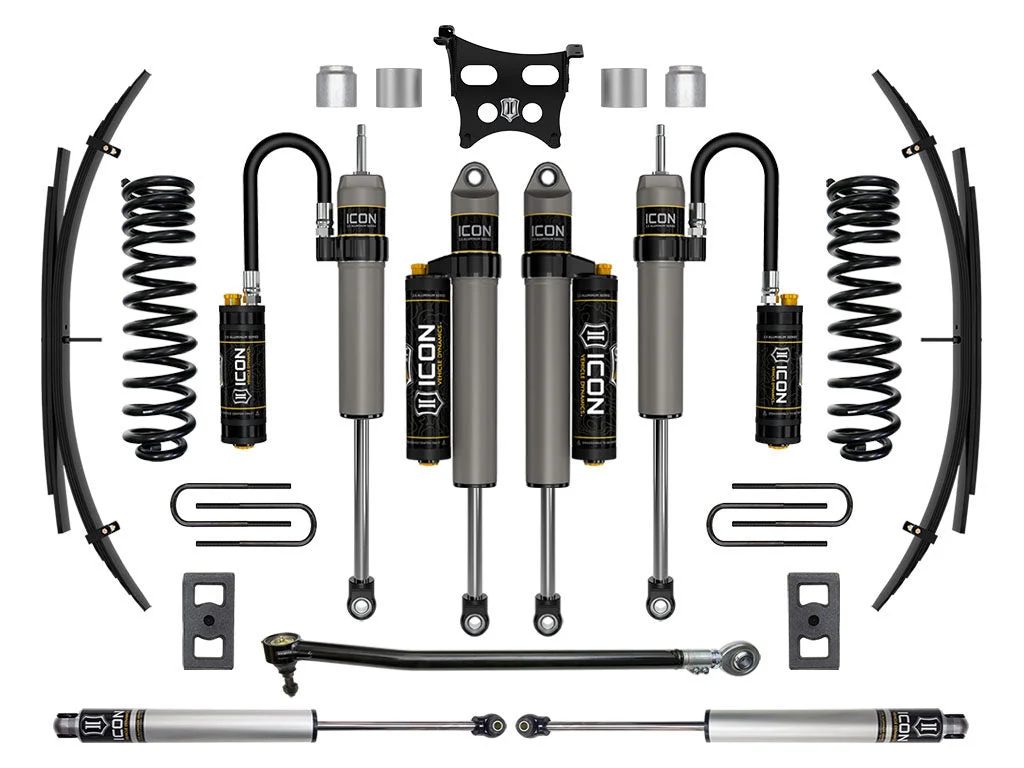

Icon K62565L – 2023 Ford F-250/F/350 2.5in Stage 5 Suspension System (w/Expansion Packs)
23 FORD F250/F350 DIESEL 2.5″ STAGE 5 SUSPENSION SYSTEM W/ EXPANSION PACKS
This ICON Vehicle Dynamics 2.5” suspension system is a great way to lift your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 5 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. ICON’s Stage 5 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, on-vehicle adjustable front track bar, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series CDCV remote reservoir front and CDCV piggyback reservoir rear shocks, for those desiring an easy way to tune the ride externally with 10 settings, from soft to hard. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
- ICON engineered dual rate coil springs provide 2.5” of front lift over stock
- Vehicle specific tuned piggyback reservoir 2.5 Aluminum Series shocks
- Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Dual steering stabilizer kit for smooth wheel control while driving
- Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
- Increased wheel travel and improved ride quality over stock with no change in towing capacity
- Adjustable track bar ensures proper axle placement and improves handling
- Less body-roll than stock
- Lifetime guarantee that springs won’t sag or break
- No drive shaft modifications required
- Shocks are fully rebuildable and re-tunable
- 100% Bolt-on system – no drilling, cutting or welding necessary for install
Coil Quantity Front: 2Coil Spring Color: BlackCoil Spring Material: SteelCoils Quantity Front: 2Damping Adjustment Type: ManualFront Reservoir Style: RemoteFront Shock Body Diameter: 2.5Front Spring Rate Type: Progressive Dual RateGrade Type: PerformanceLeaf Spring Color: BlackLeaf Spring Leaf Quantity: 7Leaf Spring Material: SteelMaximum Lift: 2.5Maximum Lift Front: 2.5Maximum Lift Height Front: 2.5Maximum Lift Height Rear: .5Maximum Lift Rear: .5Minimum Lift Front: 1.5Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: PiggybackRear Shock Body Diameter: 2.5Recommended Aftermarket Tires: 35″ x 12.50″ (37″ x 12.50″ tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.25” Backspace / 6mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25” Backspace / 6mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdd-On Part: 611081 – F-SERIES DYNAMIC HEADLAMP REAR SENSOR KITAdd-On Part: 64039 – 08-25 FSD TRACK BAR BUMP STEER BRACKET KITAdd-On Part: 61111 – 17-25 FSD FRONT 2.5″ EXTENDED SS BRAKE LINE KITAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBushings Included: Yes
