Description

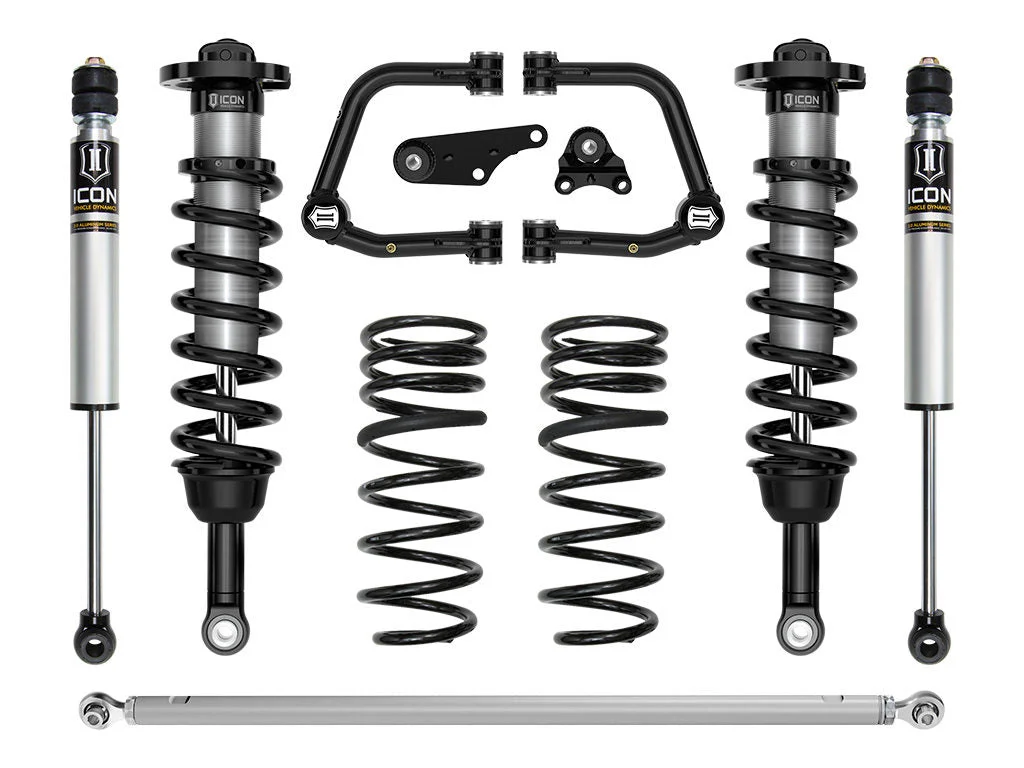

Icon K53363T – 2024 Toyota Land Cruiser 250 Series, 1.25-3″ Lift, Stage 3 Suspension System, Tubular
24-26 LAND CRUISER 250 SERIES 1.25-3″ LIFT STAGE 3 SUSPENSION SYSTEM TUBULAR
ICON LC250 suspension systems are designed with maximum performance and the serious driver in mind. ICON’S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.
The included ICON tubular upper control arm kit is designed to improve the overall performance of the Land Cruiser with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2026 Toyota Land Cruiser 250 Series Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
- Adjustable coilovers provide 1.25-3″ front lift height over stock
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
- On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
- Dual rate rear coil springs improve performance and ride quality while providing 2″ of rear lift
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series internal reservoir rear shocks with 5/8″ shafts
Active or Passive Suspension: PassiveAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 54102T – 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R TUBE UPR LINK KITAdd-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)Add-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 56100 – 07-14 FJ/03-24 4RUNNER/22-24 TUNDRA/23-24 SEQUOIA REAR SHIN GUARDSAdd-On Part: 54003T – 24-25 LC250/24-25 GX550/25 4RUNNER TUBULAR REAR LOWER LINK KITAdd-On Part: 56120 – 24-25 LAND CRUISER 250 SERIES/25 4RUNNER FRONT SKID PLATEAdd-On Part: 56121 – 24-25 LAND CRUISER 250 SERIES/25 4RUNNER HYBRID TRANS SKID PLATEAdd-On Part: 56122 – 24-25 LAND CRUISER 250 SERIES/25 4RUNNER FRONT SKID PLATE FASCIAAdjustable Compression: NoAdjustable Control Arm: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2Coil Spring Color: BlackCoil Spring Material: SteelCoils Quantity Front: 2Coils Quantity Rear: 2Front Reservoir Style: InternalFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3Maximum Lift Front: 3Maximum Lift Height Front: 3Maximum Lift Height Rear: 2Maximum Lift Rear: 2Minimum Lift Front: 1.25Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: InternalRear Shock Body Diameter: 2Rear Spring Rate Type: Progressive Dual RateRecommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required)Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 6.6” Backspace / 40mm OffsetRecommended Aftermarket Wheels: 17×8.5 with 6.32” Backspace / 40mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
