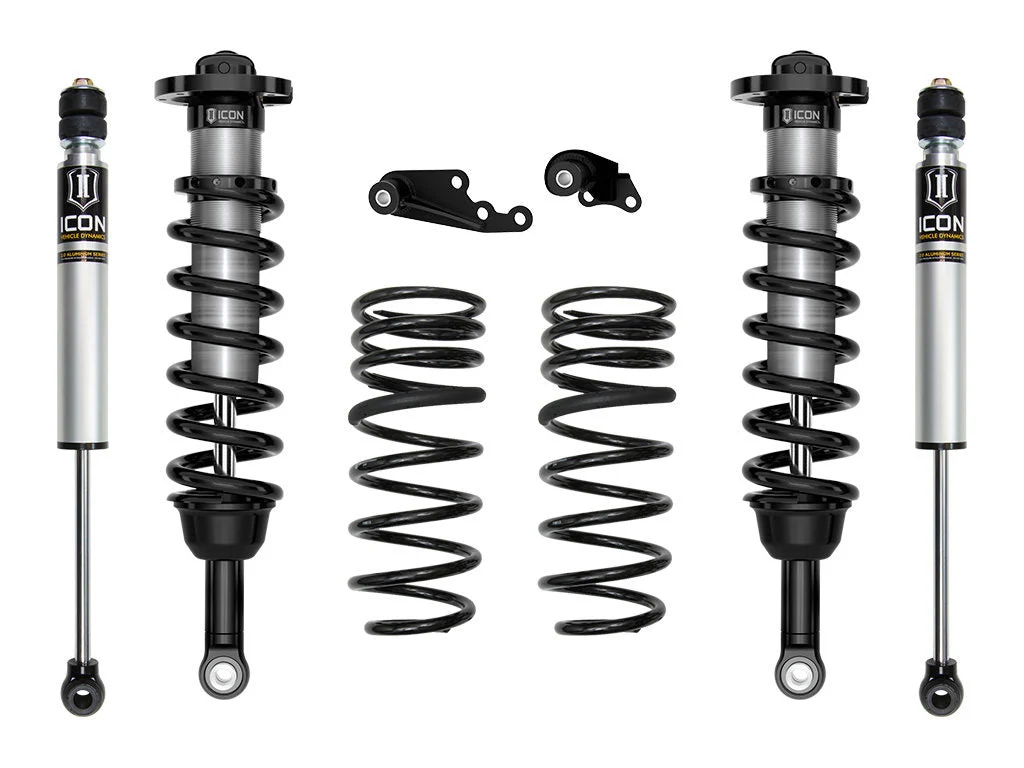

Icon K53351 – 2024-2025 Lexus GX550, 1.25-3″ Lift, Stage 1 Suspension System
24-26 GX550 1.25-3″ STAGE 1 SUSPENSION SYSTEM
ICON Vehicle Dynamics 2024-2026 Lexus GX550 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2026 Lexus GX550 Series Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
- Adjustable coilovers provide 1.25-3″ front lift height over stock
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
- Dual rate rear coil springs improve performance and ride quality while providing 2″ of rear lift
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series internal reservoir rear shocks with 5/8″ shafts
Front Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3Maximum Lift Front: 3Maximum Lift Height Front: 3Maximum Lift Height Rear: 2Maximum Lift Rear: 2Minimum Lift Front: 1.25Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: InternalRear Shock Body Diameter: 2Rear Spring Rate Type: Progressive Dual RateRecommended Aftermarket Tires: 34″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 6.6” Backspace / 40mm OffsetRecommended Aftermarket Wheels: 17×8.5 with 6.32” Backspace / 40mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelActive or Passive Suspension: PassiveAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 58452DJ – 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R TUBULAR UCA DJ PRO KITAdd-On Part: 58552GDJ – 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT GOLD ANOAdd-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)Add-On Part: 58552DJ – 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KITAdd-On Part: 54202 – 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R BLT ADJ TRACK BARAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 56100 – 07-14 FJ/03-25 4RUNNER/22-25 TUNDRA/23-25 SEQUOIA REAR SHIN GUARDSAdd-On Part: 56118 – 24-25 GX550 FRONT SKID PLATE KITAdd-On Part: 56119 – 24-25 GX550 TRANS SKID PLATE KITAdd-On Part: 56124 – 24-25 LEXUS GX550 FRONT FASCIAAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2Coil Spring Color: BlackCoil Spring Material: SteelCoils Quantity Front: 2Coils Quantity Rear: 2Front Reservoir Style: Internal
