Description

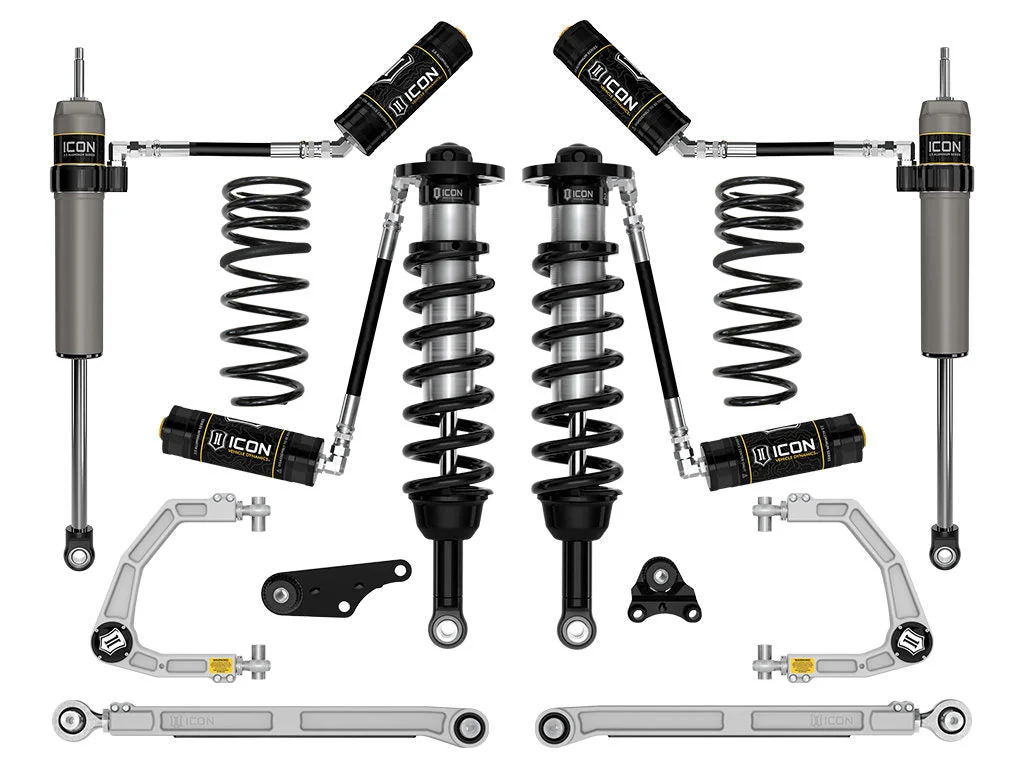

Icon K53297S – 2024+ Toyota Tacoma 1.25-3in Stage 7 Suspension System w/Multirate Springs
24-26 TACOMA 1.25-3″ STAGE 7 SUSPENSION SYSTEM BILLET WITH TRIPLE RATE SPRING
ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON’S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.
The ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. ICON billet rear lower links feature on-vehicle adjustability via the ICON double adjuster and employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. The rear triple-rate coils provide softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2026 Toyota Tacoma Stage 7 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
- Adjustable coilovers provide 1.25-3″ front lift height over stock
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Triple rate rear coil springs improve performance and ride quality while providing .5″ of rear lift
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
- ICON engineered front and rear coil springs
- FK Rod End bearings for extended longevity and minimal deflection
- Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- 2.5 Aluminum Series remote reservoir rear shocks with 7/8″ shafts provide increased performance and balanced tune with coilovers
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 56100 – 07-14 FJ/03-26 4RUNNER/22-26 TUNDRA/23-25 SEQUOIA REAR SHIN GUARDSAdd-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 54202 – 22-26 TUNDRA/23-25 SEQUOIA/24-26 TACO/LC250/GX550/25-26 T4R BLT ADJ TRACK BARAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdjustable Compression: NoAdjustable Control Arm: YesAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2Coil Spring Color: BlackCoil Spring End 1 Type: ClosedCoil Spring End 2 Type: ClosedCoil Spring Material: SteelCoil Spring Maximum Inside Diameter: 3Coils Quantity Front: 2Coils Quantity Rear: 2Front Reservoir Style: RemoteFront Shock Body Diameter: 2.5Front Spring Rate: 450Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3Maximum Lift Front: 3Maximum Lift Height Front: 3Maximum Lift Height Rear: .5Maximum Lift Rear: .5Minimum Lift Front: 1.25Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: RemoteRear Shock Body Diameter: 2.5Rear Spring Rate: 190Rear Spring Rate: 270Rear Spring Rate: 73Rear Spring Rate Type: Progressive Triple RateRecommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required)Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9 with 6.00” Backspace / 25mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
