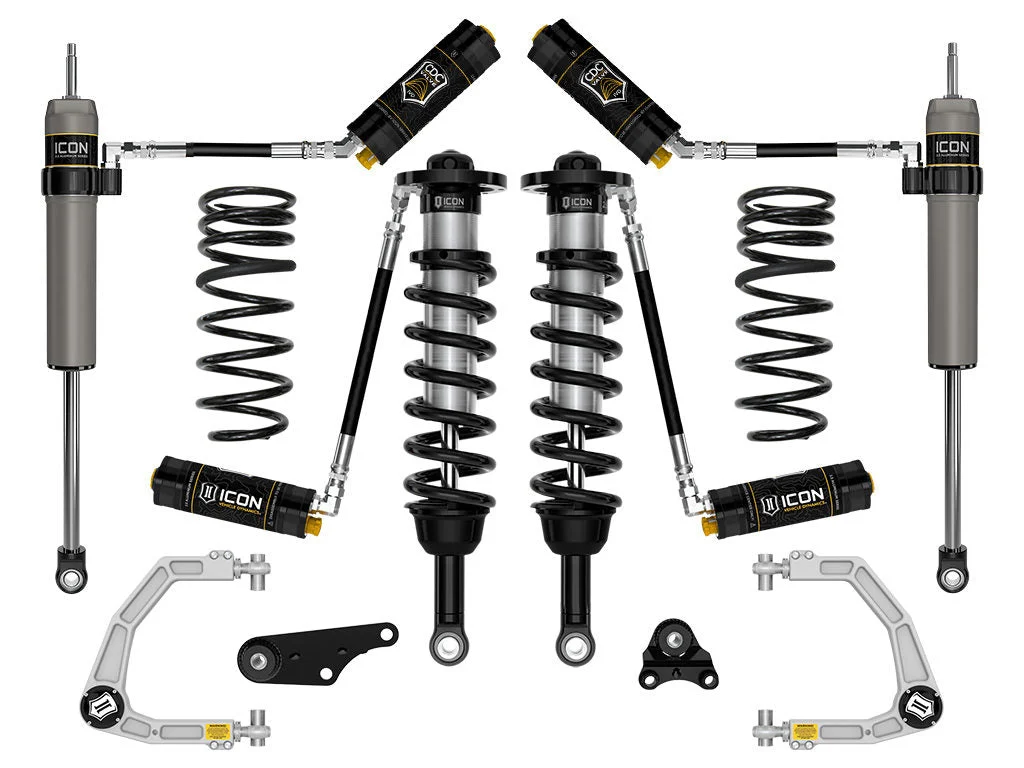

Icon K53295S – 2024+ Toyota Tacoma 1.25in-3in Stage 5 Suspension System Billet w/ Triple Rate Spring

Description

Icon K53295S – 2024+ Toyota Tacoma 1.25in-3in Stage 5 Suspension System Billet w/ Triple Rate Spring

24-26 TACOMA 1.25-3″ STAGE 5 SUSPENSION SYSTEM BILLET WITH TRIPLE RATE SPRING

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 5 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDCV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Adjustable coilovers provide 1.25-3″ front lift height over stock
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Triple rate rear coil springs improve performance and ride quality while providing .5″ of rear lift
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
• ICON engineered front and rear coil springs
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8″ shafts provide increased performance and balanced tune with coilovers

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 56100 – 07-14 FJ/03-26 4RUNNER/22-26 TUNDRA/23-25 SEQUOIA REAR SHIN GUARDSAdd-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 54202 – 22-26 TUNDRA/23-25 SEQUOIA/24-26 TACO/LC250/GX550/25-26 T4R BLT ADJ TRACK BARAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdjustable Compression: YesAdjustable Control Arm: YesAdjustable Damping: YesAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2Coil Spring Color: BlackCoil Spring End 1 Type: ClosedCoil Spring End 2 Type: ClosedCoil Spring Material: SteelCoil Spring Maximum Inside Diameter: 3Coils Quantity Front: 2Coils Quantity Rear: 2Damping Adjustment Type: ManualFront Reservoir Style: RemoteFront Shock Body Diameter: 2.5Front Spring Rate: 450Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3Maximum Lift Front: 3Maximum Lift Height Front: 3Maximum Lift Height Rear: .5Maximum Lift Rear: .5Minimum Lift Front: 1.25Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: RemoteRear Shock Body Diameter: 2.5Rear Spring Rate: 190Rear Spring Rate: 270Rear Spring Rate: 73Rear Spring Rate Type: Progressive Triple RateRecommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required)Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9 with 6.00” Backspace / 25mm OffsetReservoir Style: RemoteShocks Included: YesSpring Color: BlackSpring Material: Steel
