Icon K53237 – 23-24 Toyota Sequoia 3-4.5in Stage 7 Suspension System – Billet

Description

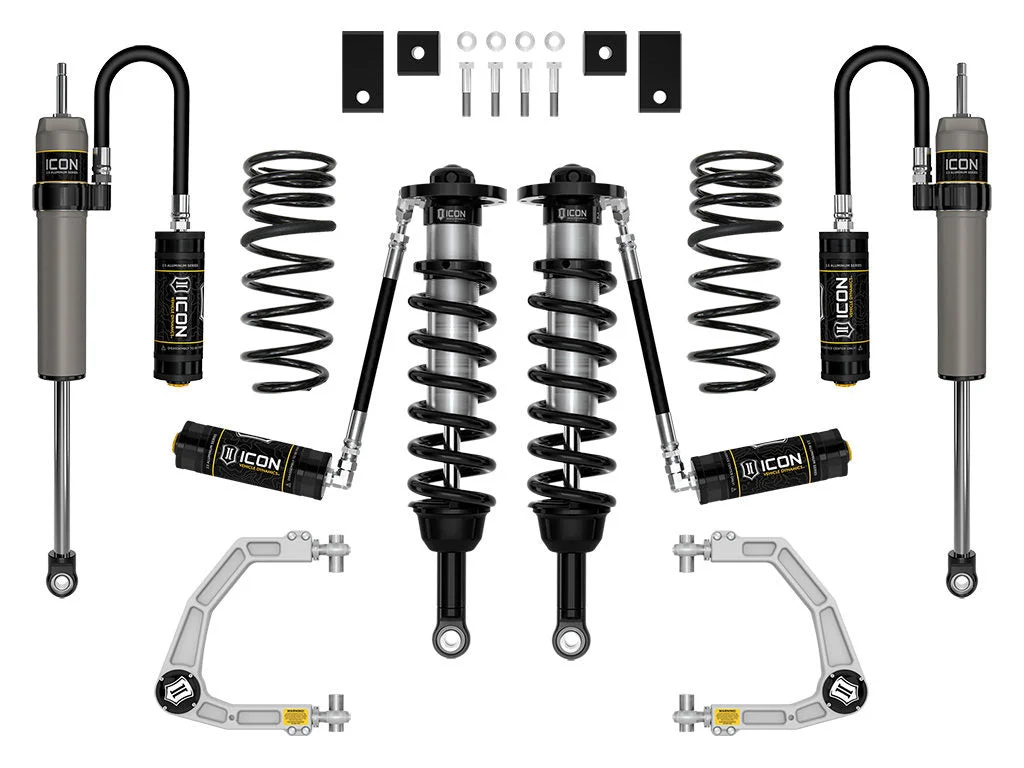

Icon K53237 – 23-24 Toyota Sequoia 3-4.5in Stage 7 Suspension System – Billet

23-25 SEQUOIA 3-4.5″ STAGE 7 SUSPENSION SYSTEM BILLET

Stage 7 includes 2.5 Series remote reservoir coilovers for 3-4.5” of front lift, greater performance, and 35” tire fitment. Billet UCAs provide alignment correction and rear coils with 2.5 Series remote res rear shocks balance the tuning.

Rounding out the Stage 7 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2025 Toyota Sequoia. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.

• Vehicle specific design for 2023-2025 Toyota Sequoia
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 3-4.5” of front lift over stock
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• Dual rate rear coil springs improve performance and ride quality while providing 0″ or 2″ of rear lift, depending on the vehicle’s stock suspension package
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• All ICON shock absorbers are fully rebuildable and re-tunable

Shocks Included: YesSpring Color: BlackSpring Material: SteelAAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdd-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Add-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 55164 – 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 55156 – 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KITAdjustable Compression: NoAdjustable Control Arm: YesAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2Coils Quantity Front: 2Coils Quantity Rear: 2Front Reservoir Style: RemoteFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 4.5Maximum Lift Front: 4.5Maximum Lift Rear: 2Minimum Lift Front: 3Minimum Lift Rear: 0Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: RemoteRear Shock Body Diameter: 2.5Rear Spring Rate Type: Progressive Dual RateRecommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 6” Backspace / 25mm OffsetReservoir Style: Remote
