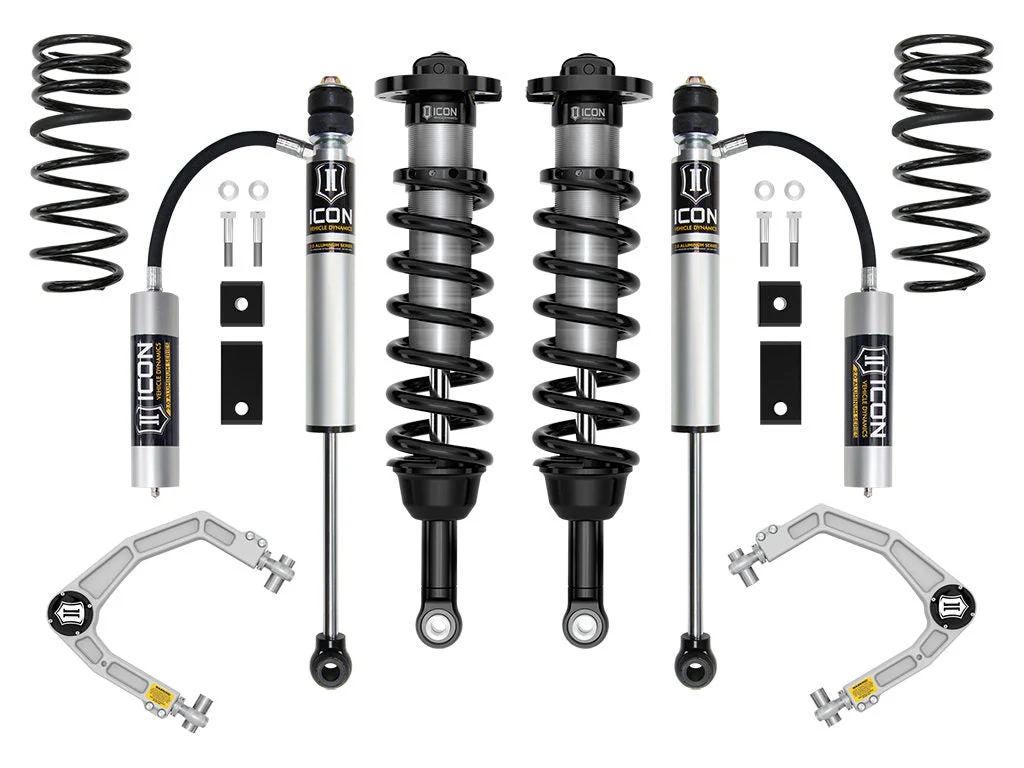

Icon K53235 – 2023+ Toyota Sequoia Stage 5 3-4.5in Billet Suspension System
23-25 SEQUOIA 3-4.5″ STAGE 5 SUSPENSION SYSTEM BILLET
Stage 5 includes a pair of 2.5 Series coilovers for 3-4.5” of front lift, greater performance, and 35” tire fitment. Billet UCAs provide alignment correction and rear coils with 2.0 Series rear shocks balance the tuning from front to rear.
Rounding out the Stage 5 suspension system are V.S. 2.0 Aluminum Series rear remote reservoir shocks specially tailored for the 2023-2025 Sequoia. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Their pairing with the ICON 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Sequoia.
- Vehicle specific design for 2023-2025 Toyota Sequoia
- 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
- Adjustable front ride heights from 3-4.5” of front lift over stock
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- Dual rate rear coil springs improve performance and ride quality while providing 0″ or 2″ of rear lift, depending on the vehicle’s stock suspension package
- 2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 55156 – 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KITAdd-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdd-On Part: 55164 – 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KITAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Adjustable Compression: NoAdjustable Control Arm: YesAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoils Quantity Front: 2Coils Quantity Rear: 2Front Reservoir Style: InternalFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 4.5Maximum Lift Front: 4.5Maximum Lift Rear: 2Minimum Lift Front: 3Minimum Lift Rear: 0Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: RemoteRear Shock Body Diameter: 2Rear Spring Rate Type: Progressive Dual RateRecommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 6” Backspace / 25mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
