Description

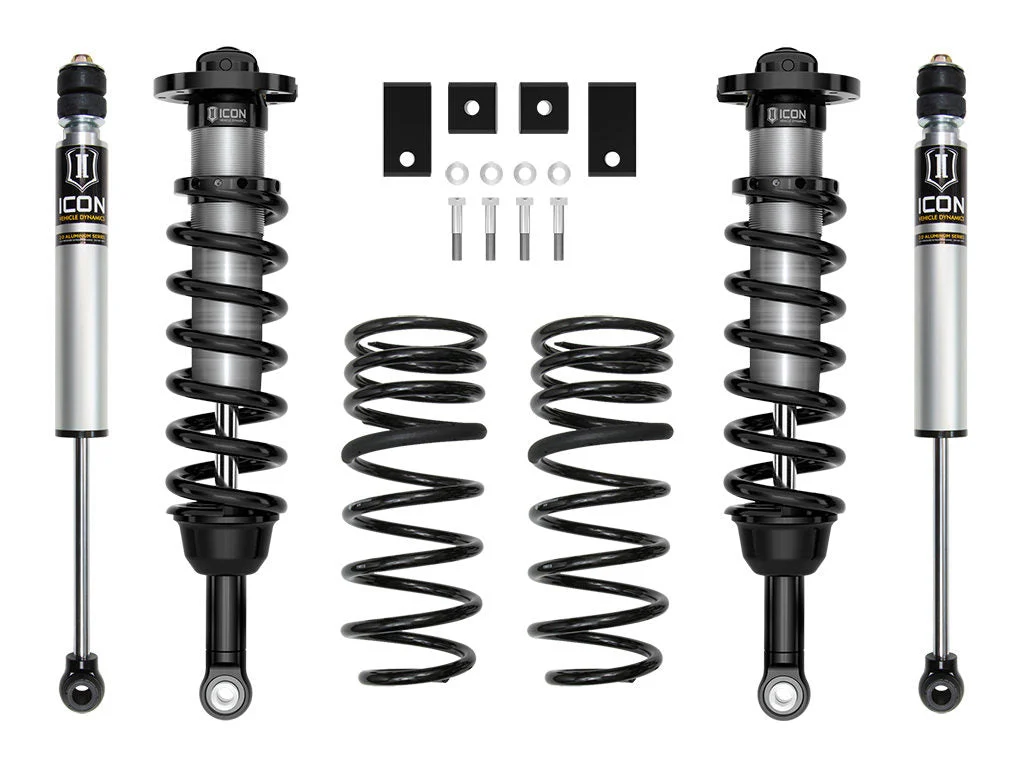

Icon K53233 – 2023+ Sequoia 3-4″ Stage 3 Suspension System
23-25 SEQUOIA 3-3.75″ STAGE 3 SUSPENSION SYSTEM
The ICON Stage 3 suspension system for the Sequoia represents full coilover performance suspension system, providing improved performance as well as front/rear-end lift and leveling for a proper stance and fitment of up to 35″ tires.
This Stage 3 system features the 2023-2025 Toyota Sequoia VS 2.5 Series internal reservoir front coilovers. These adjustable coilovers allow up to 3-3.75” of lift height adjustability over stock when using the OE upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road.
- Vehicle specific design for 2023-2025 Toyota Sequoia
- 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
- Adjustable front ride heights from 3-3.75” of front lift over stock when used with stock UCAs
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Dual rate rear coil springs improve performance and ride quality while providing 0″ or 2″ of rear lift, depending on the vehicle’s stock suspension package
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
Maximum Lift Front: 3.75Maximum Lift Rear: 3Minimum Lift Front: 3Minimum Lift Rear: 0Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: InternalRear Shock Body Diameter: 2Rear Spring Rate Type: Progressive Dual RateRecommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 6” Backspace / 25mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm OffsetReservoir Style: InternalShocks Included: YesSpring Color: BlackSpring Material: SteelAAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 55156 – 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KITAdd-On Part: 55164 – 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Add-On Part: 58561DJ – 22-25 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KITAdd-On Part: 58461DJ – 22-25 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KITAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoils Quantity Front: 2Coils Quantity Rear: 2Front Reservoir Style: InternalFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3
