Description
Icon K53231 – 2023 Toyota Sequoia 1.75-4in Stage 1 Suspension System
23-25 SEQUOIA 0-2.13″ STAGE 1 SUSPENSION SYSTEM

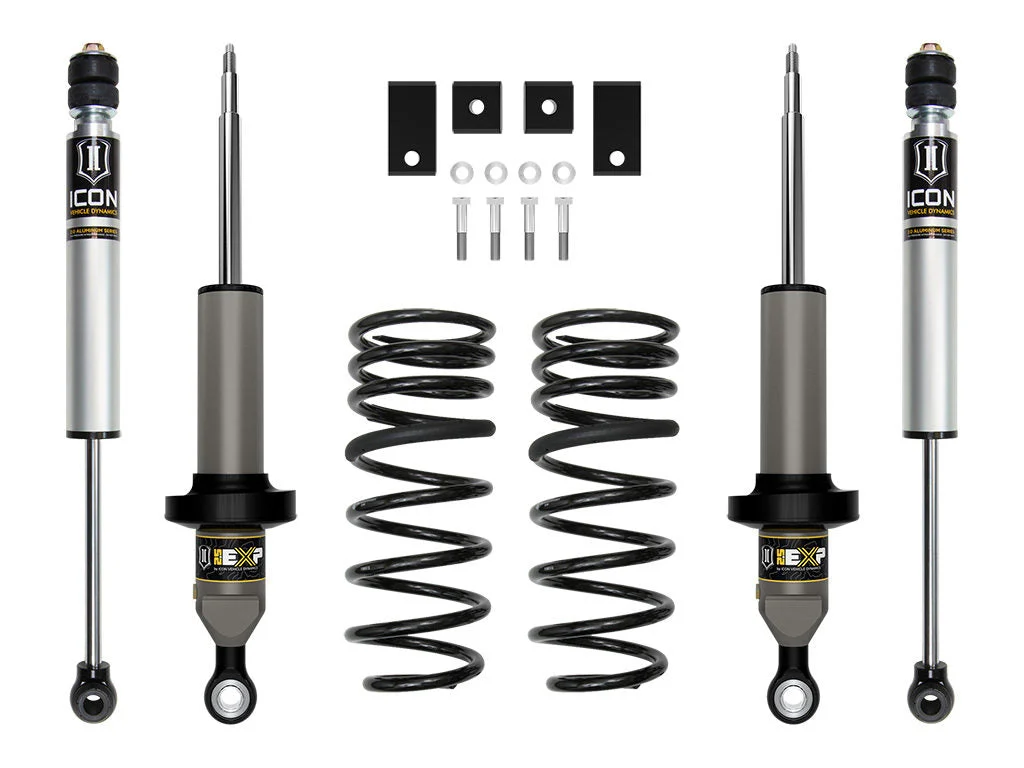

The ICON Vehicle Dynamics Stage 1 complete suspension system for the 2023-2025 Toyota Sequoia represents our entry level performance suspension system, providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35″ tires. This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.
- Vehicle specific design for 2023-2025 Toyota Sequoia
- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 0-2.13” of front lift over stock with the use of snap ring
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- Dual rate rear coil springs improve performance and ride quality while providing 0″ or 2″ of rear lift, depending on the vehicle’s stock suspension package
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 58561DJ – 22-25 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KITAdd-On Part: 55156 – 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KITAdd-On Part: 58461DJ – 22-25 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KITAdd-On Part: 55164 – 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KITAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoils Quantity Rear: 2Front Reservoir Style: InternalFront Shock Body Diameter: 2.5Grade Type: PerformanceMaximum Lift: 2.13Maximum Lift Front: 2.13Maximum Lift Rear: 2Minimum Lift Front: 0Minimum Lift Rear: 0Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: InternalRear Shock Body Diameter: 2Rear Spring Rate Type: Progressive Dual RateRecommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 6” Backspace / 25mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm OffsetReservoir Style: InternalShocks Included: YesSpring Color: BlackSpring Material: Steel
