Description

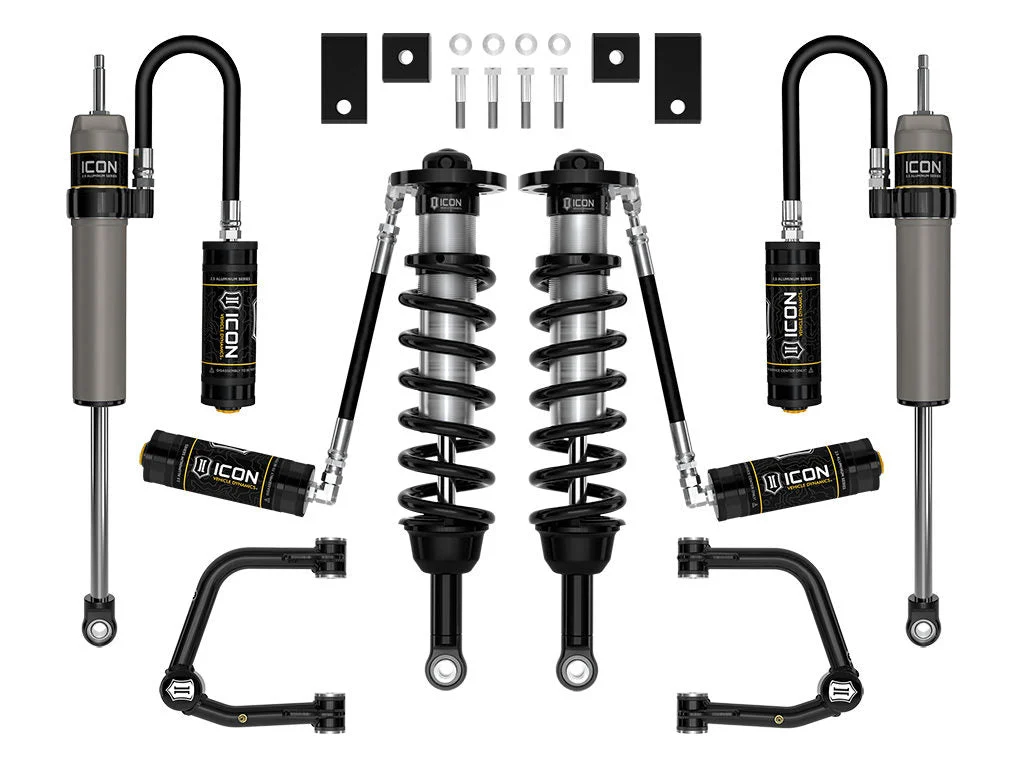

Icon K53197T – 2022+ Toyota Tundra 2-3.5in Stage 7 Tubular Suspension System
22-25 TUNDRA 2-3.5″ STAGE 7 SUSPENSION SYSTEM TUBULAR
Stage 7 includes remote reservoir coilovers for 2-3.5” of front lift, better off-road performance and 35” tire fitment. Tubular UCAs for alignment correction and 2.5 Series remote reservoir rear shocks for balanced shock tuning.
Rounding out the Stage 7 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2025 Tundra. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.
- Vehicle specific design for 2022-2025 Toyota Tundra
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 55156 – 22-26 TUNDRA/23-25 SEQUOIA/24-26 GX550 DIFF DROP KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Add-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 55164 – 22-26 TUNDRA/23-25 SEQUOIA ALUMINUM SKID PLATE SPACER KITAdd-On Part: 56111 – 22-26 TUNDRA REAR HYD BUMP STOP KITAdd-On Part: 56112 – 22-26 TUNDRA/23-25 SEQUOIA/24-26 GX550 REAR FOAM BUMP STOP KITAdd-On Part: 56113 – 22-26 TUNDRA/23-25 SEQUOIA FRONT FOAM BUMP STOP KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdjustable Compression: NoAdjustable Control Arm: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2Coil Spring Color: BlackCoil Spring End 1 Type: ClosedCoil Spring End 2 Type: ClosedCoil Spring Material: SteelCoil Spring Maximum Inside Diameter: 3Coils Quantity Front: 2Front Reservoir Style: RemoteFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3.5Maximum Lift Front: 3.5Maximum Lift Height Front: 3.5Minimum Lift Front: 2Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: RemoteRear Shock Body Diameter: 2.5Recommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)Recommended Aftermarket Wheels: 17×8.5″ w/ 5.75” Backspace / 25mm OffsetReservoir Style: RemoteShocks Included: YesSpring Color: BlackSpring Material: Steel
