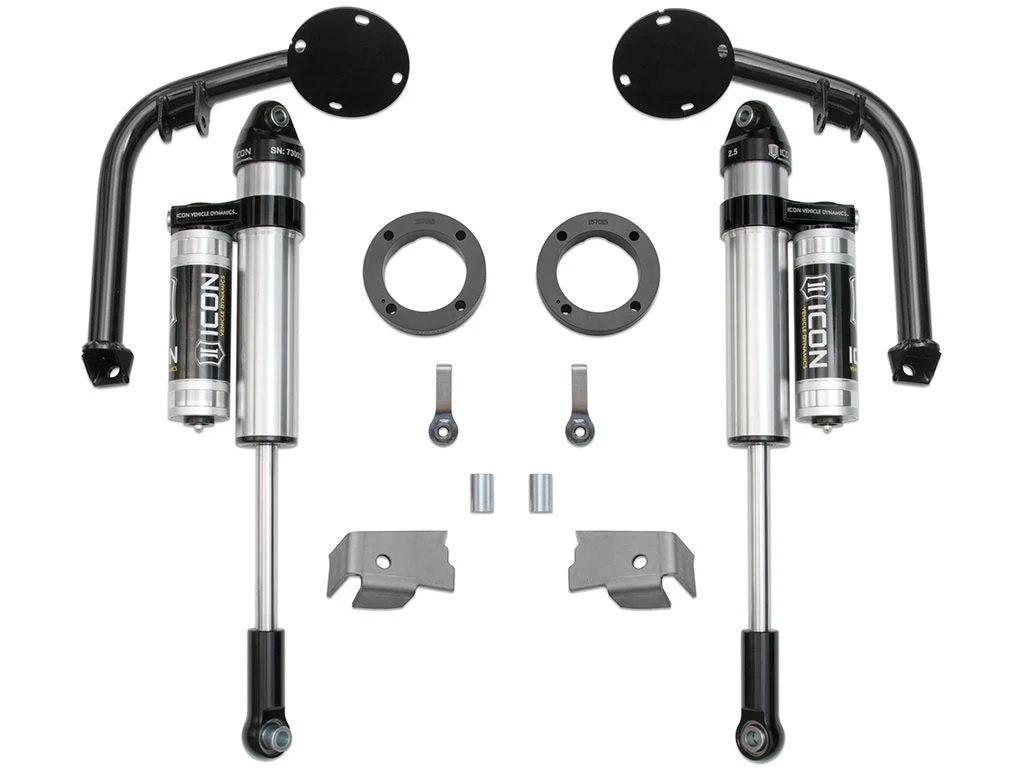

Icon K53151 – 2007+ Toyota Tundra S2 Stage 1 Upgrade System
07-21 TUNDRA S2 STAGE 1 UPGRADE SYSTEM
2007-UP TOYOTA TUNDRA S2 STAGE 1 UPGRADE SYSTEM
As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable, mostly bolt-on upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows 2007-2021 Toyota Tundra owners to upgrade in steps or all at once. The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel lower shock mounts make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product.
- Drastically improves vehicle damping ability off-road
- Increased vehicle stability on-road
- Utilizes factory lower control arms
- Maintains OE track width
- Vehicle-specific tuned 2.5 Series secondary shocks provide increased damping and oil volume
- Shocks are fully rebuildable and revalveable
- Simple and straightforward installation
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Adjustable: NoBushings Included: YesCylinder Color: SilverCylinder Diameter: 2.5Cylinder Material: SteelDamping Type: OilGas Charged: YesGrade Type: PerformanceLower Mount Type: EyeletMounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625” Backspace / 16mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 6” Backspace / 25mm OffsetShaft Diameter: 0.875Shaft Material: ChromeShock Mounts Included: YesShocks Included: YesUpper Mount Type: Eyelet
