Description

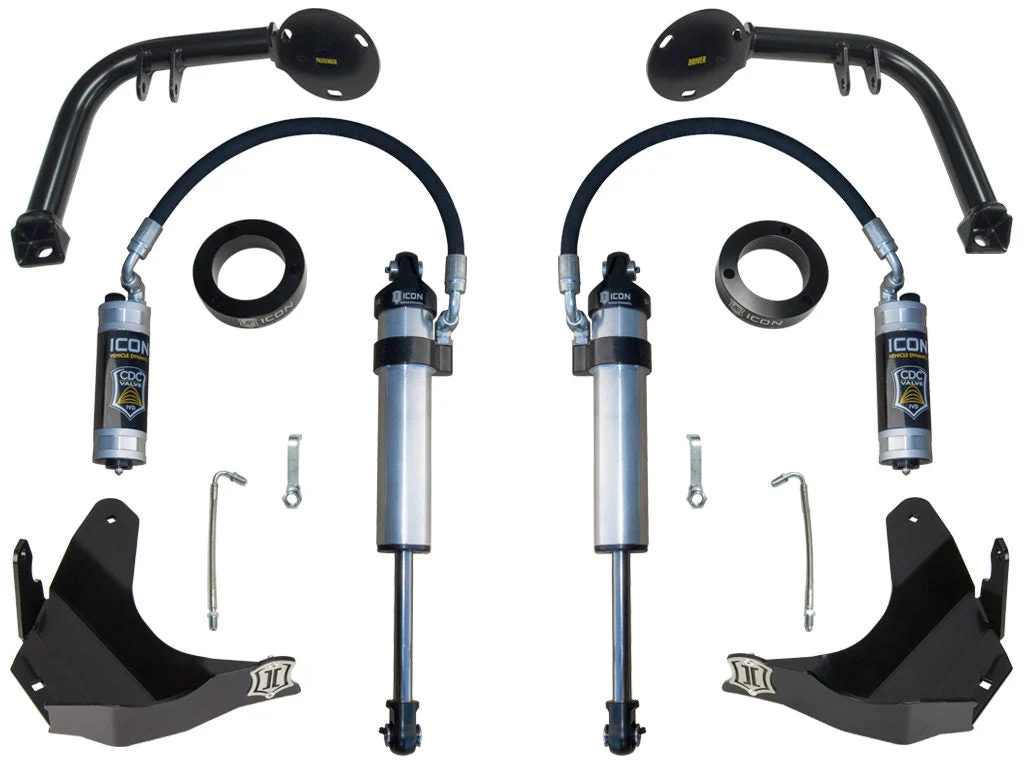

Icon K53126 – 2016+ Toyota Tacoma S2 Stage 2 Upgrade System
16-23 TACOMA S2 STAGE 2 UPGRADE SYSTEM
The ICON Vehicle Dynamics S2 Secondary Shock System redefines the off-road capability of the 2016-2023 Toyota Tacoma by allowing for the installation of a secondary shock to an existing ICON coilover setup. The addition of a secondary 2.5 Aluminum Series shock means rougher terrain and larger off-road obstacles can be overcome with confidence as the damping ability of the vehicle’s suspension is effectively doubled. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows 2016-2023 Toyota Tacoma owners to upgrade in steps or all at once.
- Drastically improves vehicle damping ability off-road
- Increased vehicle stability on-road
- Utilizes factory lower control arms
- Maintains OE track width
- Vehicle-specific tuned secondary shocks provide increased damping and oil volume
- CDC Valve technology allows for quick and easy compression damping adjustment
- Shocks are fully rebuildable and revalveable
- 2.5 Aluminum Series secondary shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Mostly bolt-on design makes for straightforward install
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdjustable Compression: YesAdjustable Rebound: NoAdjustable Ride Height: NoBushings Included: YesCylinder Color: GrayCylinder Diameter: 2.5Cylinder Finish: AnodizedCylinder Material: AluminumDamping Adjustment Type: ManualDamping Type: OilDust Shield Included: NoGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5” Backspace / 0mm OffsetRemote Reservoir: YesShaft Diameter: 0.875Shaft Material: ChromeShock Mounts Included: YesShocks Included: YesUpper Mount Type: EyeletValving Type: Digressive
