Description

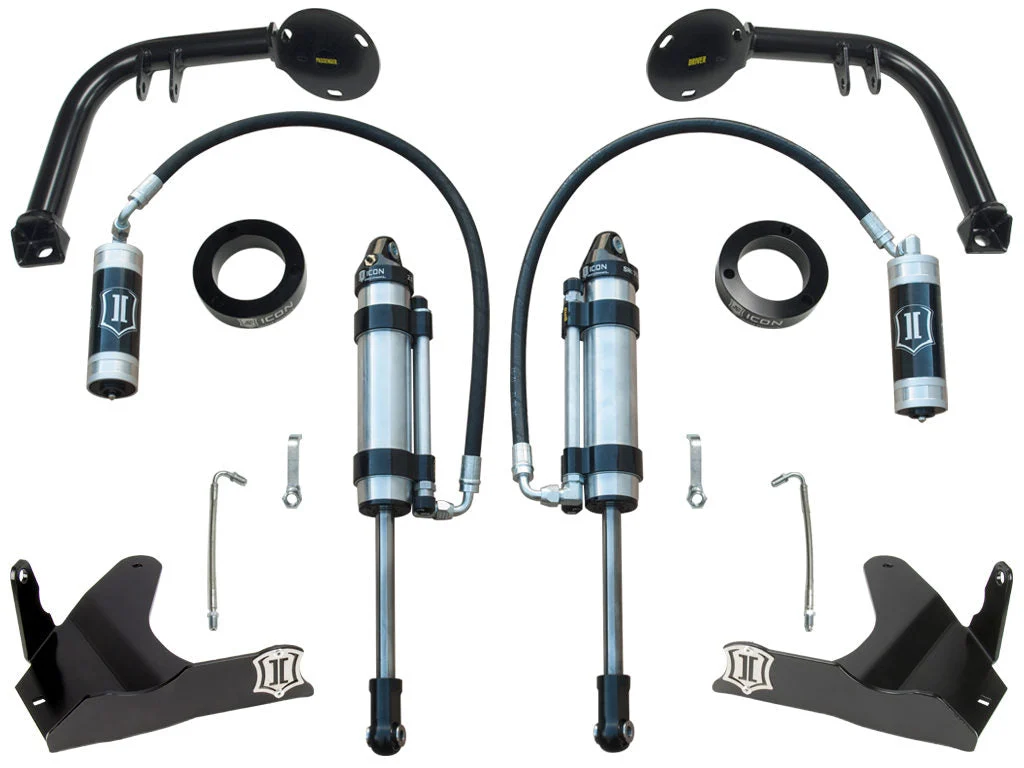

Icon K53113 – 2005+ Toyota Tacoma / 03-09 Toyota 4Runner / 07-09 Toyota FJ S2 Stage 3 Upgrade System
05-15 TACOMA/03-09 4RUNNER/07-09 FJ S2 STAGE 3 UPGRADE SYSTEM
2005-2015 TACOMA/20003-2009 4RUNNER/2007-2009 FJ S2 STAGE 3 UPGRADE SYSTEM
The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel skid plates (with incorporated shock mounts) make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product. The system was designed to eliminate the need for any major alteration of the vehicle’s frame or any other factory suspension components, and the components are 100% removable in case the system is to be installed on another vehicle. The modular design of the S2 kit also allows for standalone installation of the skid plates, which provides the added benefit of protecting the factory lower control arms from potential trail damage that can be experienced while off-road.
- Drastically improves vehicle damping ability off-road
- Increased vehicle stability on-road
- Utilizes factory lower control arms
- Maintains OE track width
- Vehicle-specific tuned secondary shocks provide increased damping and oil volume
- 2.5 Aluminum Series secondary shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Omega Series two-tube bypass allows for compression and rebound damping adjustment
- Shocks are fully rebuildable and revalveable
- Mostly bolt-on design makes for straightforward install
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)Adjustable: YesBushings Included: NOCylinder Color: SilverCylinder Diameter: 2.5Cylinder Material: AluminumDamping Type: OilGas Charged: YesGrade Type: PerformanceLower Mount Type: EyeletMounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5” Backspace / 0mm OffsetShaft Diameter: 0.875Shaft Material: ChromeShock Mounts Included: YesShocks Included: YesUpper Mount Type: Eyelet
