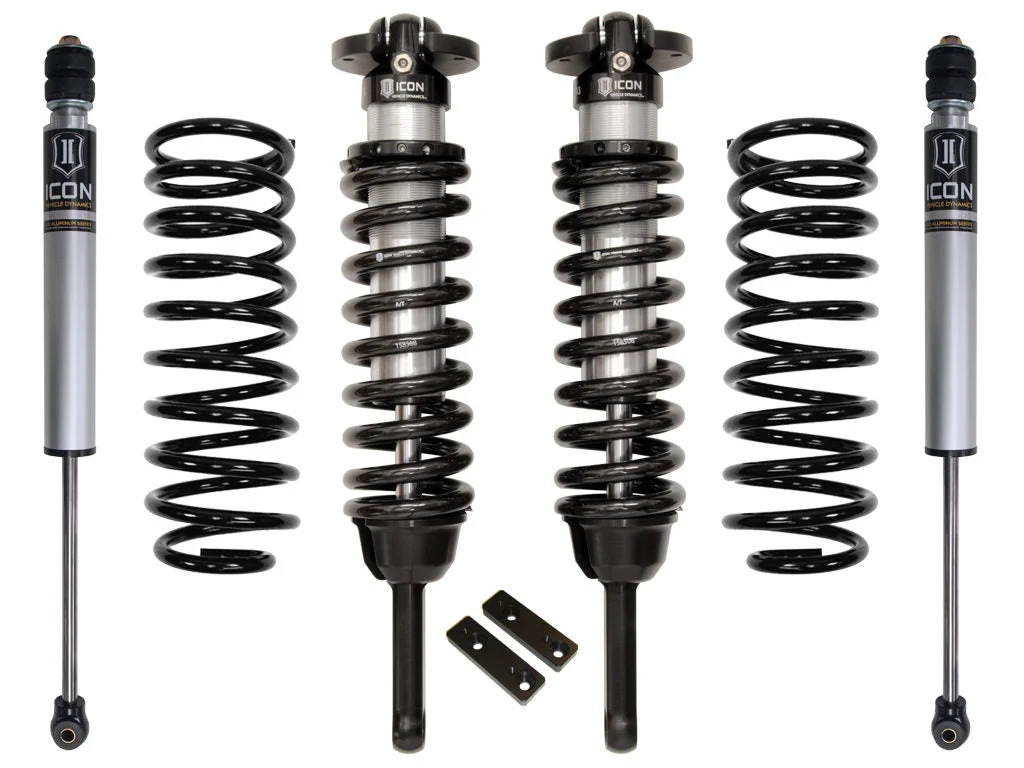

Icon K53061 – 2010+ Toyota FJ/4Runner 0-3.5in Stage 1 Suspension System
10-UP FJ/10-UP 4RUNNER 0-3.5″ STAGE 1 SUSPENSION SYSTEM
ICON suspension systems lift your 4Runner or FJ Cruiser while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
This is our entry level suspension system for the 2010-2024 Toyota 4Runner and 2010-2014 FJ Cruiser. The Stage 1 system works well in most on and off-road scenarios by significantly improving factory body roll and overall driving ability. ICON 2.5 Series front coilover shocks feature a vehicle-specific tune to give your Toyota 4Runner great ride quality on or off-road, and they are adjustable from 0 to 3.5″ of lift. Our rear 2.0 Aluminum Series shocks in this system are tuned to match the front 2.5 Series coilovers in every aspect, providing smooth and consistent damping performance front to rear. This system is finished off with a pair of 2″ lift rear coil springs that have been engineered to further improve ride quality and handling.
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide 0-3.5″ of lift height
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8″ shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series rear IFP shock with 5/8″ shaft
- Bolt-on system means no cutting or welding necessary for install
Add-On Part: 54200 – 07-14 FJ/03-24 4RNR/03-23 GX REAR ADJ TRACK BAR KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Add-On Part: 51051 – 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KITAdd-On Part: 51052 – 03-24 4RUNNER/07-14 FJ REAR SWAY BAR LINK KITAdjustable Damping: NoBushings Included: YesCoil Quantity Front: 2Coils Quantity Front: 2Coils Quantity Rear: 2Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3.5Maximum Lift Front: 3.5Maximum Lift Rear: 2Minimum Lift Front: 0Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Spring Rate Type: LinearRecommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelSpring Rate: 650AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 51045 – TOYOTA .25” BUMP STOP SPACER KIT
