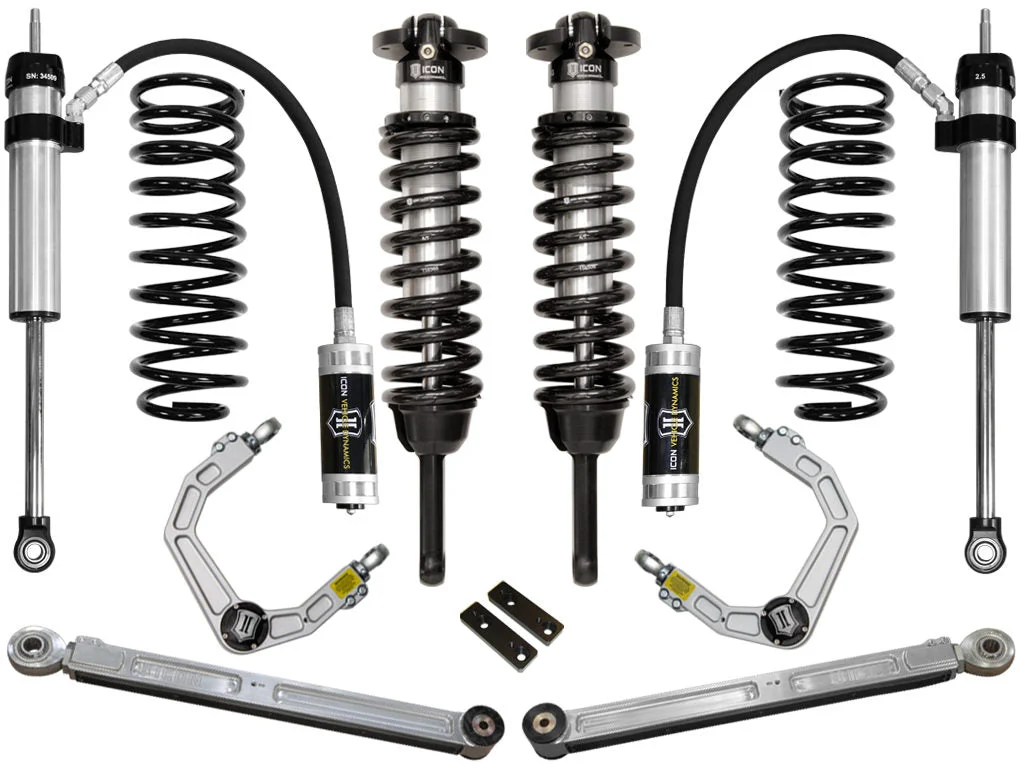

Icon K53054 – 03-09 Toyota 4Runner/FJ 0-3.5in Stage 4 Suspension System w/Billet Uca

Description

Icon K53054 – 03-09 Toyota 4Runner/FJ 0-3.5in Stage 4 Suspension System w/Billet Uca

03-09 4RUNNER/FJ 0-3.5″ STAGE 4 SUSPENSION SYSTEM W BILLET UCA

2003-2009 4RUNNER/2007-2009 FJ CRUISER 0-3.5″ LIFT STAGE 4 SUSPENSION SYSTEM WITH BILLET UCA

This system features upper control arms with ICON’s patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint

• Increased wheel travel and ride quality over stock
• Bolt-on system means no cutting or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5″ of front lift height
• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• Billet Aluminum rear lower links offer on vehicle pinion angle adjustment
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8″ shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8″ shafts

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Add-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)Add-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdd-On Part: 51051 – 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KITAdd-On Part: 51052 – 03-24 4RUNNER/07-14 FJ REAR SWAY BAR LINK KITBushings Included: YesCoils Quantity Front: 2Coils Quantity Rear: 2Grade Type: PerformanceMaximum Lift: 3.5Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5” Backspace / 0mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelSpring Rate: 650
