Icon K53025T – 2007+ Toyota Tundra 1-3in Stage 5 Suspension System w/Tubular Uca

Description

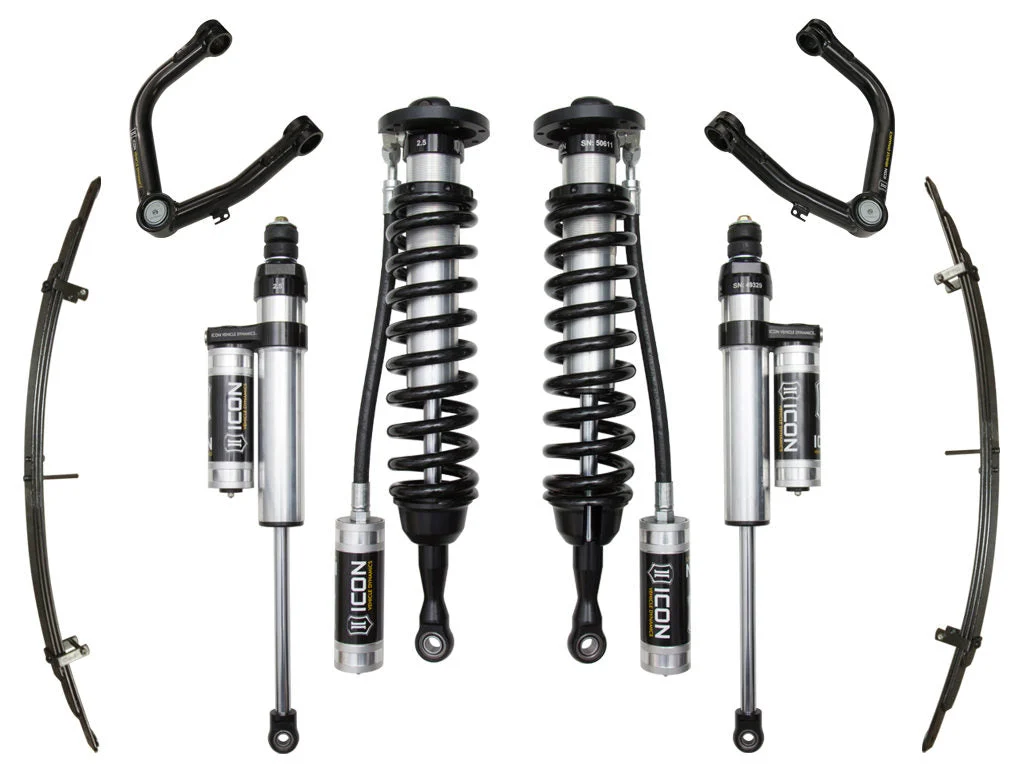

Icon K53025T – 2007+ Toyota Tundra 1-3in Stage 5 Suspension System w/Tubular Uca

07-21 TUNDRA 1-3″ STAGE 5 SUSPENSION SYSTEM W TUBULAR UCA

2007-2021 TOYOTA TUNDRA 1-3″ LIFT STAGE 5 SUSPENSION SYSTEM WITH TUBULAR UCA

This system features upper control arms with ICON’s patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers from 1-3″ of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8″ shaft
• FK rod end bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear shocks with one-piece impact extruded aluminum cylinders and 7/8″ polished chrome shafts
• Rear expansion pack for 1.5” of lift and better ride quality
• 100% Bolt-on system – no cutting, or welding necessary for install

Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 6” Backspace / 25mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625” Backspace / 16mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITBushings Included: YesCoils Quantity Front: 2Grade Type: PerformanceLeaf Spring Leaf Quantity: 3Maximum Lift: 3.5Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
