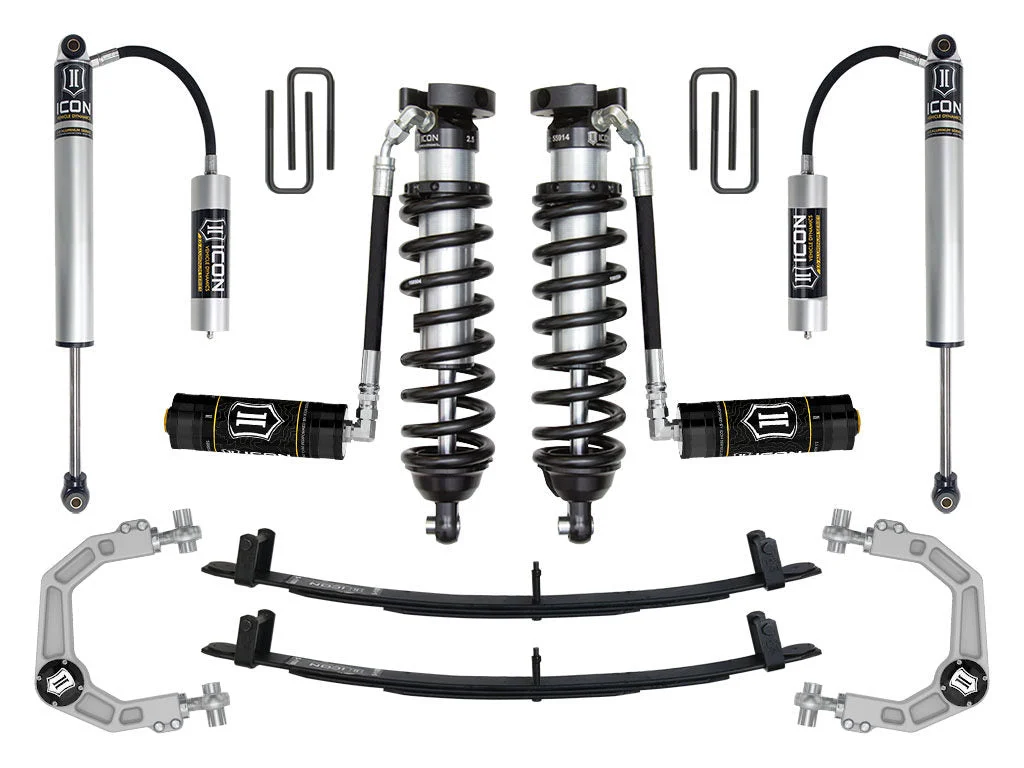

Icon K53014B – 95.5-04 Toyota Tacoma 0-3in. Stage 4 Suspension System W/ Billet Upper Control Arms

Description

Icon K53014B – 95.5-04 Toyota Tacoma 0-3in. Stage 4 Suspension System W/ Billet Upper Control Arms

95.5-04 TACOMA 0-3″ STAGE 4 SUSPENSION SYSTEM W BILLET UCA

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5” coilover shocks featuring extended travel & remote reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5″ of rear lift over stock. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 96-04 Toyota Tacoma 4WD/PreRunner Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable coilovers provide up to 3.5″ of front lift height
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8″ shafts
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5″ of rear lift

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Add-On Part: 158508 – COIL SPRING 1400.0300.0700 BLACKAdd-On Part: 51045 – TOYOTA .25” BUMP STOP SPACER KITAdd-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdjustable Compression: NoAdjustable Control Arm: YesAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2Coils Quantity Front: 2Front Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceLeaf Spring Leaf Quantity: 3Maximum Lift: 3Maximum Lift Front: 3Maximum Lift Rear: 1.5Minimum Lift Front: 0Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Shock Body Diameter: 2Rear Spring Rate Type: LinearRecommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 5” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9 with 5” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 4.75” Backspace / 0mm OffsetReservoir Style: RemoteShocks Included: YesSpring Color: BlackSpring Material: SteelSpring Rate: 650
