Description

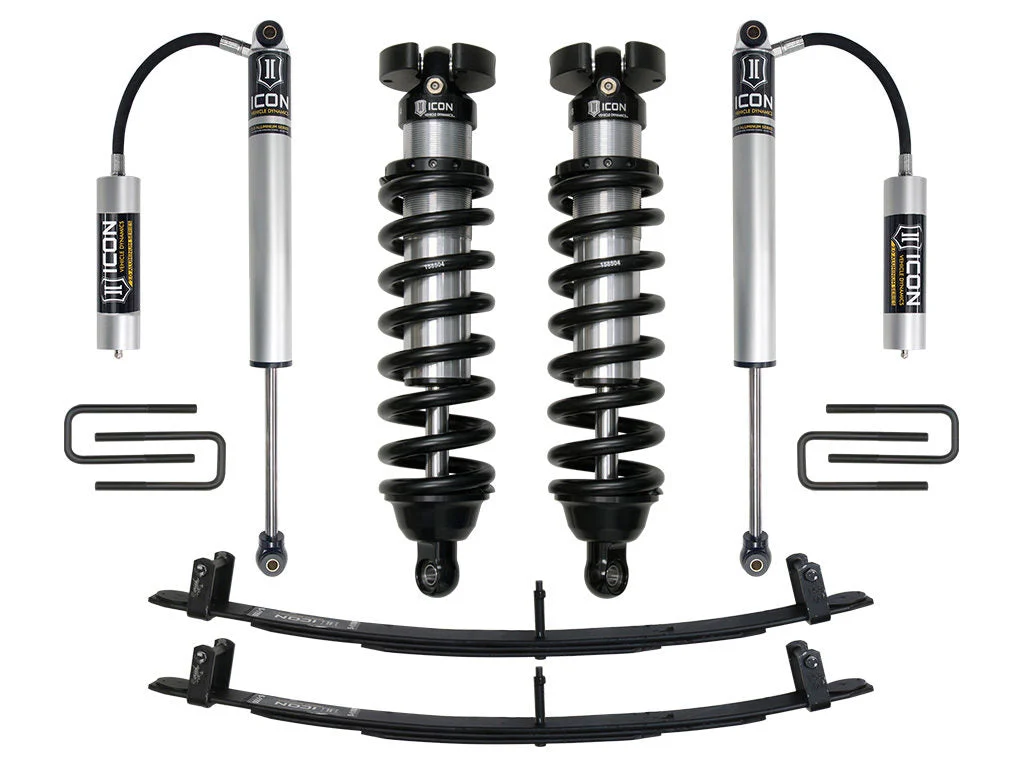

Icon K53012 – 95.5-04 Toyota Tacoma 0-3in Stage 2 Suspension System
95.5-04 TACOMA 0-3″ STAGE 2 SUSPENSION SYSTEM
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 96-04 Toyota Tacoma 4WD/PreRunner Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers from 0-3″ of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8″ hardened chrome shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear Emulsion shock with 5/8″ polished chrome plated steel shaft
- 100% Bolt-on system – no drilling, cutting, or welding necessary for install
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 158508 – COIL SPRING 1400.0300.0700 BLACKAdd-On Part: 58500DJ – 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KITAdd-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Add-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 51045 – TOYOTA .25” BUMP STOP SPACER KITAdd-On Part: 58400DJ – 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KITAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2Coils Quantity Front: 2Front Reservoir Style: InternalFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceLeaf Spring Leaf Quantity: 3Maximum Lift: 3Maximum Lift Front: 3Maximum Lift Rear: 1.5Minimum Lift Front: 0Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: RemoteRear Shock Body Diameter: 2Rear Spring Rate Type: LinearRecommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 20×9 with 5” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 4.75” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9 with 5” Backspace / 0mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelSpring Rate: 650
