Description

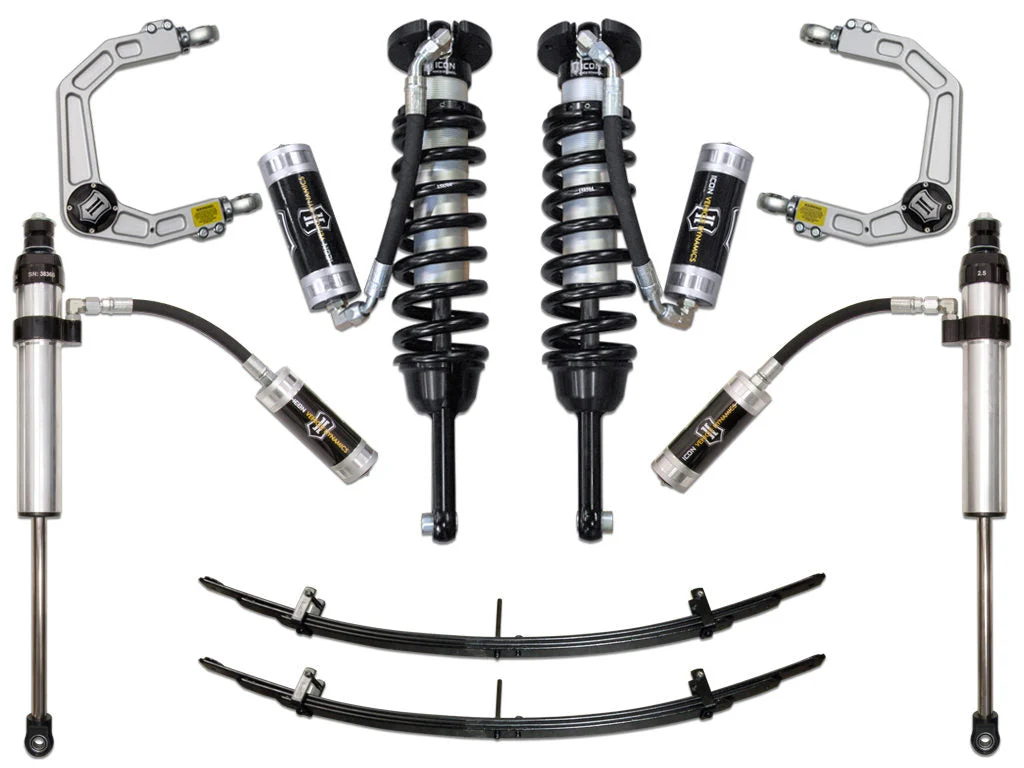

Icon K53005 – 05-15 Toyota Tacoma 0-3.5in/2016+ Toyota Tacoma 0-2.75in Stg 5 Suspension System w/Billet Uca
05-15 TACOMA 0-3.5″/ 16-UP 0-2.75″ STAGE 5 SUSPENSION SYSTEM W BILLET UCA
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 5 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5″ of rear lift over stock. ICON 2.5 Aluminum Series Remote Reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
- Adjustable coilovers provide up to 3.5″ of front lift height on 2005-2015 models and up to 2.75″ on 2016-2023 models
- Extended Travel coilovers offer maximum wheel travel
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
- FK Rod End bearings for extended longevity and minimal deflection
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
- 2.5 Aluminum Series remote reservoir rear shocks with 7/8″ shafts offer increased shock damping
- Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5″ of rear lift
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 51051 – 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KITAdd-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 51045 – TOYOTA .25” BUMP STOP SPACER KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdd-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Adjustable Compression: NoAdjustable Control Arm: YesAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2Coil Spring Color: BlackCoil Spring End 1 Type: ClosedCoil Spring End 2 Type: ClosedCoil Spring Material: SteelCoil Spring Maximum Inside Diameter: 3Coils Quantity Front: 2Front Reservoir Style: RemoteFront Shock Body Diameter: 2.5Front Spring Rate: 650Front Spring Rate Type: LinearGrade Type: PerformanceLeaf Spring Color: BlackLeaf Spring Leaf Quantity: 3Leaf Spring Material: SteelMaximum Lift: 3.5Maximum Lift Front: 3.5Maximum Lift Height Front: 3.5Maximum Lift Height Rear: 1.5Maximum Lift Rear: 1.5Minimum Lift Front: 0Minimum Lift Rear: 1Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRear Reservoir Style: RemoteRear Shock Body Diameter: 2.5Rear Spring Rate Type: LinearRecommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 5” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 4.75” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9 with 5” Backspace / 0mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
