Description
Icon K40012T – 2021+ Ford Bronco Hoss 2.0 Pkg Stage 2 Suspension System Tubular UCA (2- 3in Lift)
21-23 BRONCO HOSS 2.0 PKG 0-2″ LIFT STAGE 2 SUSPENSION SYSTEM TUBULAR
ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
The ICON Vehicle Dynamics Stage 2 Suspension System for the 2021-2023 Ford Bronco features front and rear 2.5 EXP Series coilovers to yield increased wheel travel along with superior ride quality and suspension performance both on and off-road. 2.5 EXP Series coilovers combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP coilovers use a series of snap-ring grooves machined into the shock body to provide easily-selectable ride height adjustment from 1.375-3” of front lift and 1.5-2.25″ of rear lift over stock on Bronco’s equipped with the OE HOSS 2.0 suspension package.
- Vehicle specific design for 2021-2023 Ford Bronco with HOSS 2.0 Suspension Package
- Vehicle specific tuned shocks for superior shock damping and vehicle control

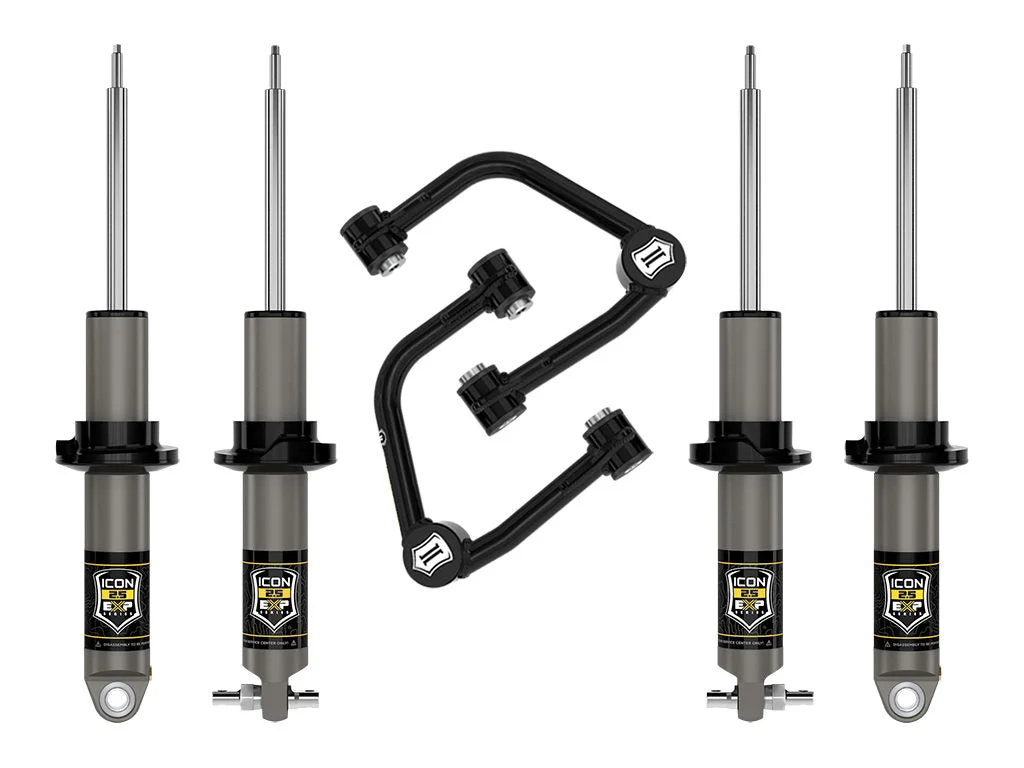

- Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
- Adjustable ride heights from 0-2” of front lift and 0-1.75″ of rear lift over stock with the use of snap rings
- Utilizes factory coils and coil hardware
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shafts
- One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
- 100% Bolt-on – no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 42000 – 21-25 BRONCO HIGH CLEARANCE CRASH BAR KITAdd-On Part: 44200T – 21-26 BRONCO REAR ADJ TRACK BAR KITAdd-On Part: 45212 – 21-26 BRONCO XD TIE ROD KITAdd-On Part: 611082 – EXP 1″ SHAFT BUMP EXTENSIONAdjustable Compression: NoAdjustable Control Arm: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesFront Reservoir Style: InternalFront Shock Body Diameter: 2.5Grade Type: PerformanceMaximum Lift: 4Maximum Lift Front: 2Maximum Lift Rear: 1.75Minimum Lift Front: 0Minimum Lift Rear: 0Mounting Hardware Included: YesRear Reservoir Style: InternalRear Shock Body Diameter: 2.5Shocks Included: Yes
