Description
Icon K22106 – 2020+ Jeep Gladiator 2.5″ Stage 6 Suspension System
2020-UP JEEP GLADIATOR JT 2.5″ STAGE 6 SUSPENSION SYSTEM

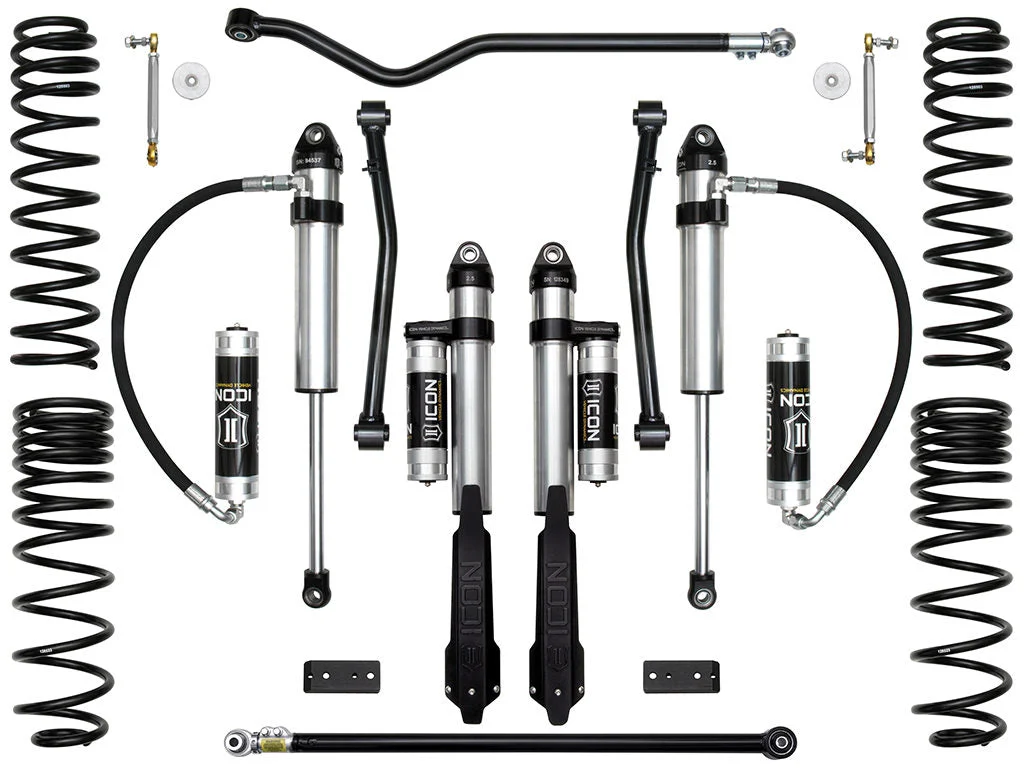

The Stage 6 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving off-road performance and overall ride quality for the application that will see occasional heavy off-road use. This complete suspension system features ICON’s proven 2.5 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
- 2.5″ lift height
- Fits 35″ tires (37″ with extended bump stop spacer kit)
- 33% front, 23% rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Front lower links included for caster angle correction and improved front end articulation
- Dual rate front coil springs with lifetime guarantee against sagging/breakage
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Front and rear track bars ensure proper alignment and improved articulation
- Adjustable, billet aluminum front sway bar links
- 100% bolt-on system makes for an easy install
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdd-On Part: 22042 – 20-UP JT / 18-UP JL / 07-18 JK FRONT HYD BUMP STOP KITAdd-On Part: 611070 – 20-UP JT MOJAVE FRONT 2.5 MISALIGNMENT SPACER KITAdd-On Part: 22071 – 20-UP JT EXTENDED BUMP STOP SPACER KITAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITBushings Included: YesCoil Spring End 1 Type: OpenCoil Spring End 2 Type: OpenCoils Quantity Front: 2Coils Quantity Rear: 2Grade Type: PerformanceMaximum Lift: 2.5Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35″ x 12.50″ (37″ x 12.50″ with optional bump stop spacer kit part # 22071)Recommended Aftermarket Wheels: ICON Alloys – 18×9 w/ 4.5″ Backspace / -12mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5 w/ 4.5″ Backspace / -6mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9 w/ 4.5″ Backspace / -12mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
