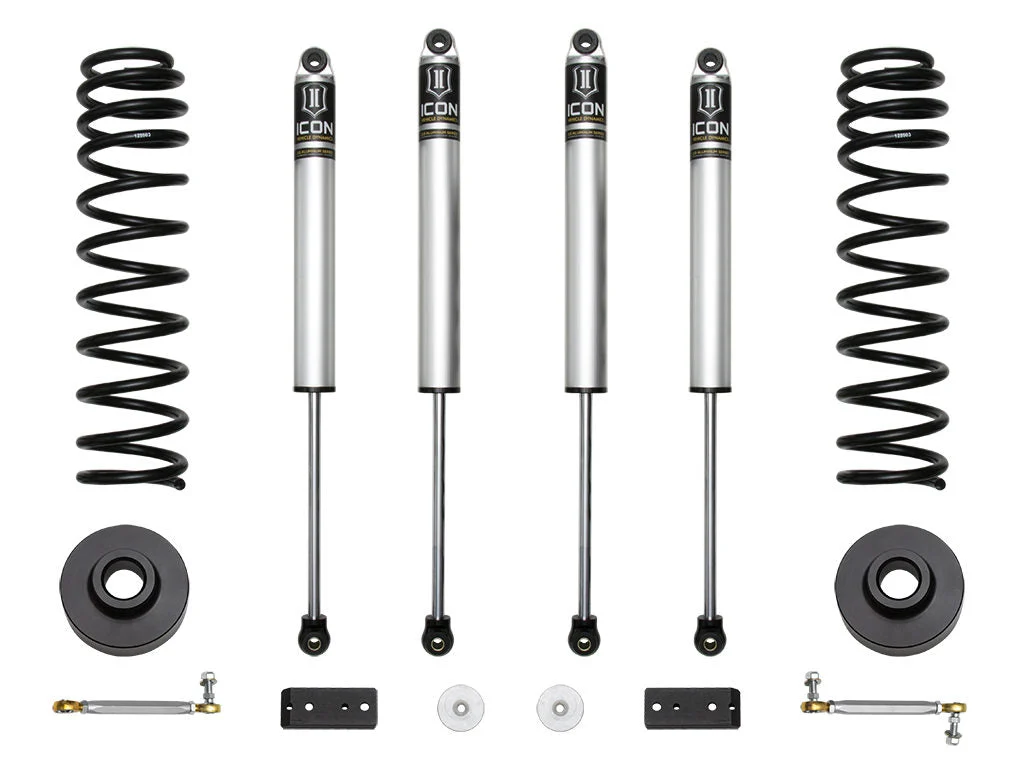

Icon K22101 – 2020+ Jeep Gladiator JT 2.5in Stage 1 Suspension System
2020-UP JEEP GLADIATOR JT 2.5″ STAGE 1 SUSPENSION SYSTEM
Through an accelerated testing process dubbed the “ICON1K” R&D program, ICON has logged over a thousand miles in the dirt pushing the JT to off-road extremes to identify limiting factors in OE components, develop products that remove these limits, and further extrapolate performance out of this vehicle. This 2” suspension system has been tweaked, tuned, and revised several times over the course of this ICON1K testing in an effort to provide unparalleled ride quality and vehicle dynamics for everything from rock crawling to high-speed desert running. By removing the aforementioned “limiting factors” this ICON suspension system completely redefines the potential of the 2020-2023 Jeep Gladiator with wheel travel gains over 30%!
- 2″ front lift height over stock
- Fits 35″ tires (37″ with extended bump stop spacer kit)
- 33% front, 23% rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Dual rate coil springs with lifetime guarantee against sagging/breakage
- Billet aluminum rear 1.375″ coil spacers eliminate the factory rake
- 2.0 Aluminum Series shocks with vehicle specific valving
- Adjustable, billet aluminum front sway bar links
- 100% bolt-on system makes for an easy install
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 22071 – 20-UP JT EXTENDED BUMP STOP SPACER KITAdd-On Part: 22042 – 20-UP JT / 18-UP JL / 07-18 JK FRONT HYD BUMP STOP KITAdjustable Damping: NoBushings Included: YesCoil Spring End 1 Type: OpenCoil Spring End 2 Type: OpenCoils Quantity Front: 2Front Spring Rate Type: Progressive Dual RateGrade Type: PerformanceMaximum Lift Front: 2Maximum Lift Rear: 1.38Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35″ x 12.50″ (37″ x 12.50″ with optional bump stop spacer kit part # 22071)Recommended Aftermarket Wheels: ICON Alloys – 20×9 w/ 4.5″ Backspace / -12mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9 w/ 4.5″ Backspace / -12mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5 w/ 4.5″ Backspace / -6mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
