Icon K214523 – 2014+ Ram 2500 4WD 4.5in Stage 3 Suspension System
14-18 DODGE RAM 2500 4WD 4.5″ STAGE 3 SUSPENSION SYSTEM
2014-2018 DODGE RAM 2500 4WD 4.5″ LIFT STAGE 3 SUSPENSION SYSTEM

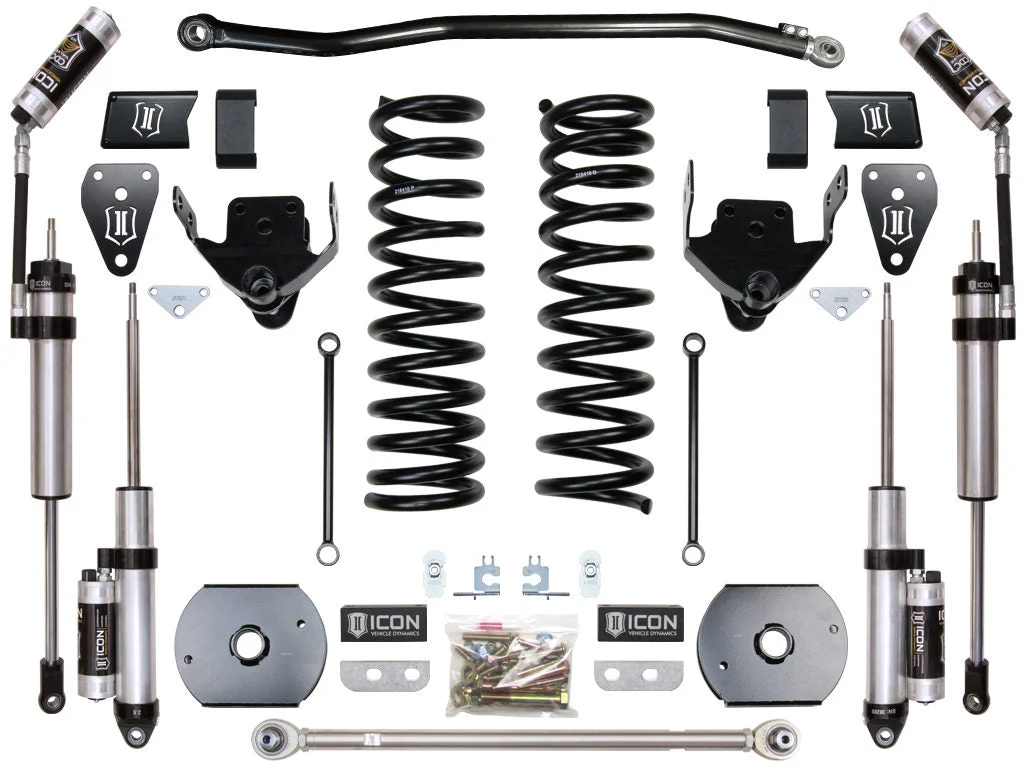

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 3 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 3 system a huge upgrade for 2014-2018 Ram 2500 4WD trucks that are not only used for daily driving and towing, but spirited off-road driving as well.
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Decreased body roll
- Level stance from front to rear of vehicle
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- Vehicle specific tuned front and rear 2.5 Series shocks provide superior damping and ride quality
- 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.25” BS / 13mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 214211 – 14-UP RAM HD 1.75″ CARRIER BEARING DROP KITAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 216520 – 09-UP RAM HD 2.0 STEERING STABILIZERAdd-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHBushings Included: YesCoils Quantity Front: 2Dual Rate Coil Springs: YesGrade Type: PerformanceMaximum Lift: 4.5Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 37″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required)Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.50″ BS / 12mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.50″ BS / 12mm Offset
