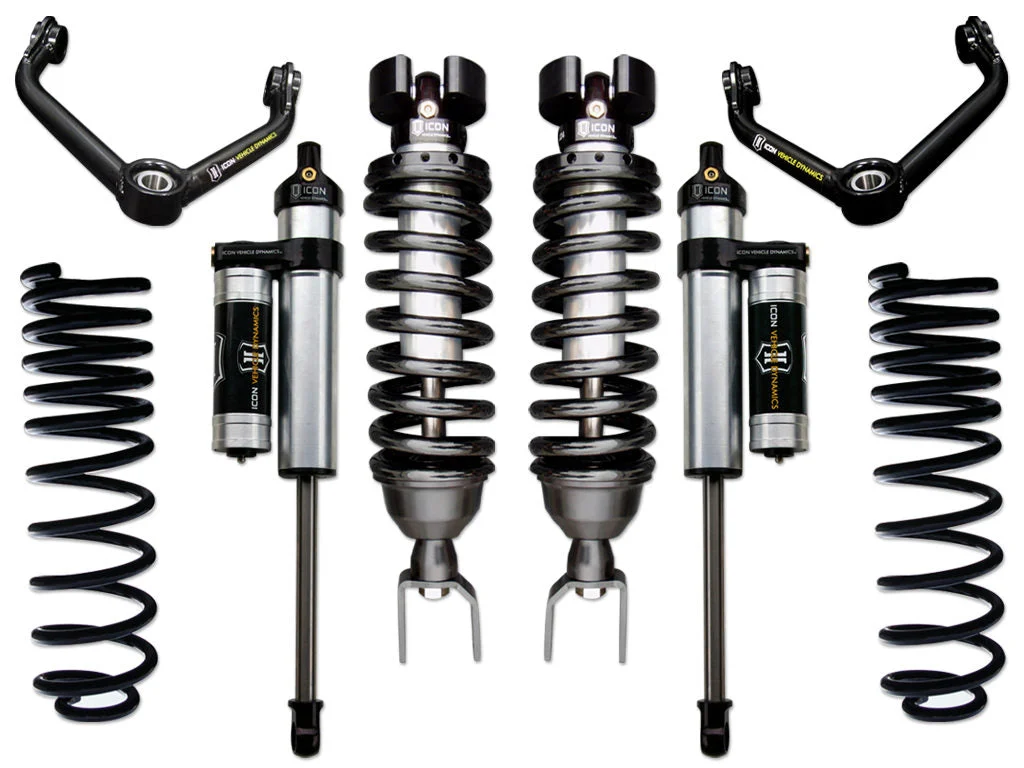

Icon K213004 – 09-18 Ram 1500 4WD .75-2.5in Stage 4 Suspension System
09-18 RAM 1500 4WD .75-2.5″ STAGE 4 SUSPENSION SYSTEM
2009-2018 RAM 1500 4WD .75-2.5″ LIFT STAGE 4 SUSPENSION SYSTEM
This system features upper control arms with ICON’s patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers from .75-2.5″ of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- FK rod end bearings for extended longevity and minimal deflection
- 100% Bolt-on system – no drilling, cutting, or welding necessary for install
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 191011 – TUBULAR UCA BILLET CAP SETAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)Bushings Included: YesCoil Spring End 1 Type: OpenCoil Spring End 2 Type: OpenCoils Quantity Front: 2Coils Quantity Rear: 2Grade Type: PerformanceMaximum Lift: 2.5Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required)Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” BS / 0mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
