Icon K212544A – 19+ Ram 2500 4WD 2.5in Stage 4 Suspension System (Air Ride)
2014-UP RAM 2500 4WD AIR RIDE 2.5″ LIFT STAGE 4 SUSPENSION SYSTEM

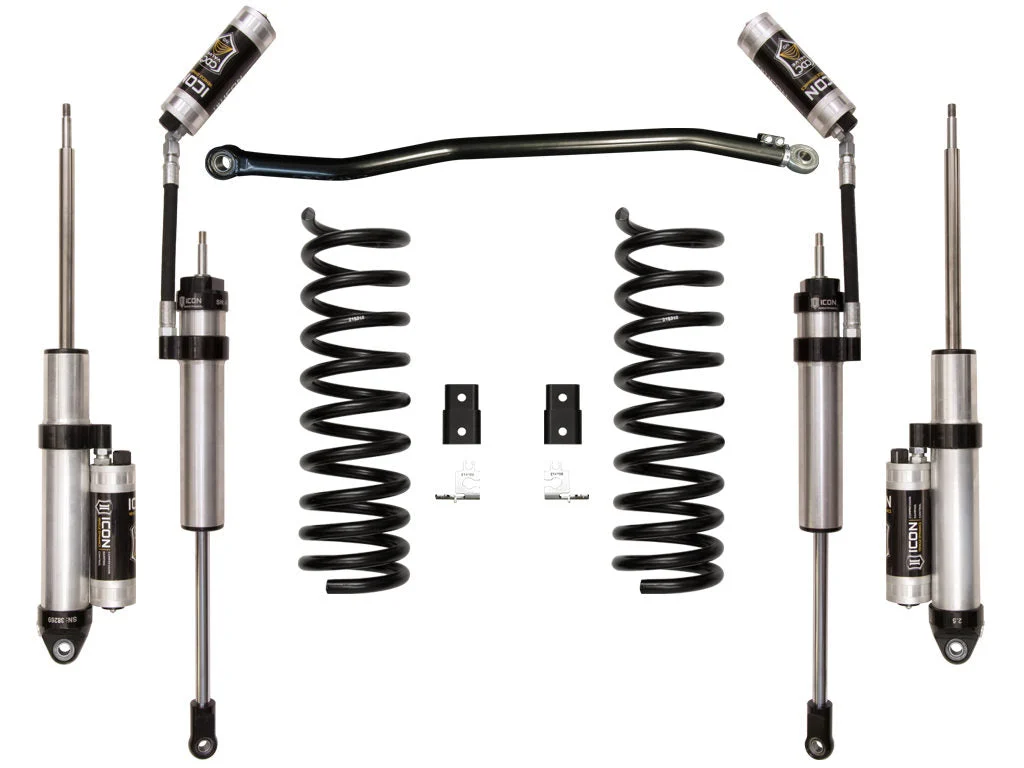

ICON’s 2014-UP Ram 2500 4WD 2.5” Stage 4 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, front adjustable track bar, as well as 2.5 Aluminum Series reservoir front and rear shocks with CDCV. This system improves ride quality and performance both on and off-road. The ICON stage 4 system is great for towing, rough construction site terrain, and country dirt roads all while keeping a smooth highway feel. ICON 2.5″ reservoir shocks with CDCV ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included in this stage for those desiring an easy way to tune the ride externally. An adjustable track bar with FK bearings is used to not only improve rigidity over the flexible factory joints, but offer adjustability to center the front axle under the truck. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
- ICON engineered dual rate coil springs with match tuned 2.5 Aluminum Series reservoir shocks
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Adjustable track bar with PTFE lined FK bearings
- Less body roll than stock
- No drive shaft modifications needed
- Optional ICON 2″ Air Ride Kit (Part #214212) allows for end-user adjustability of rear ride height
Coil Spring End 2 Type: OpenCoils Quantity Front: 2Dual Rate Coil Springs: YesGrade Type: PerformanceMaximum Lift: 2.5Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required)Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.50″ BS / 12mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.50″ BS / 12mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.25” BS / 13mm OffsetShocks Included: YesSpring Color: BlackSpring Material: SteelAAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 216520 – 09-UP RAM HD 2.0 STEERING STABILIZERAdd-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 214212 – 14-UP RAM 2500 2.0″ AIR RIDE KITBushings Included: YesCoil Spring End 1 Type: Open
