Icon K212543P – 19+ Ram 2500 4WD 2.5in Stage 3 Suspension System (Performance)

Description

Icon K212543P – 19+ Ram 2500 4WD 2.5in Stage 3 Suspension System (Performance)

2014-UP RAM 2500 4WD 2.5″ LIFT STAGE 3 SUSPENSION SYSTEM (PERFORMANCE)

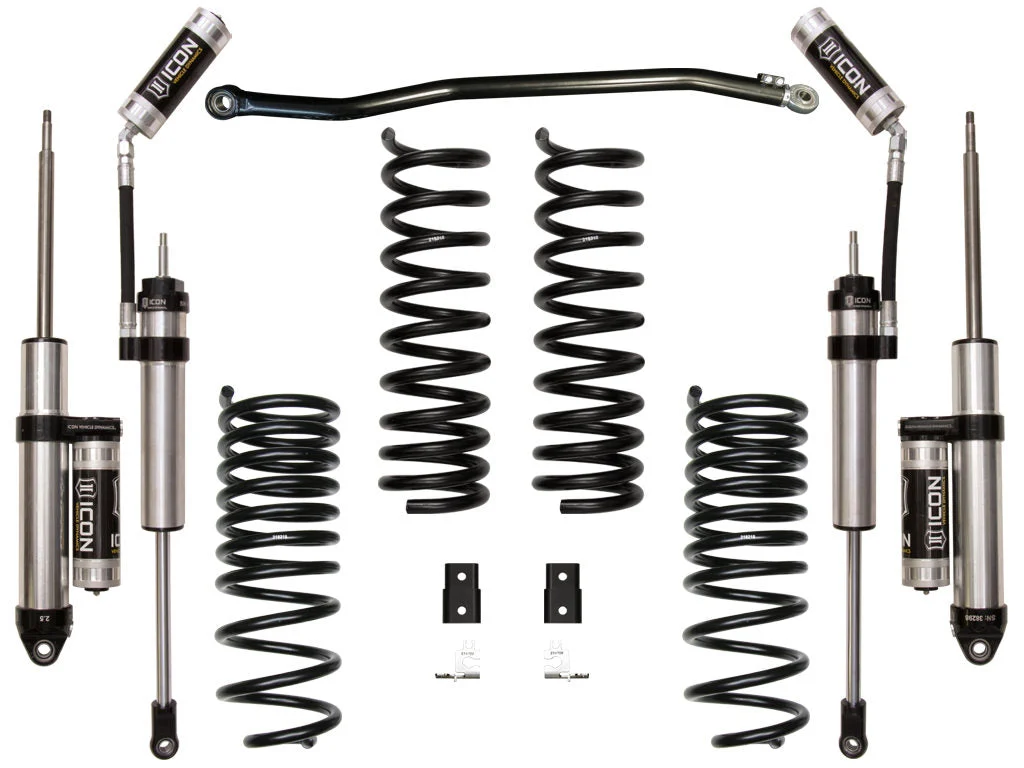

ICON’s 2014-UP Ram 2500 4WD 2.5” Stage 3 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, front adjustable track bar as well as 2.5 Aluminum Series reservoir front and rear shocks. This system improves ride quality and performance both on and off-road. The ICON stage 3 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON 2.5 Aluminum Series reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The adjustable track bar with FK bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

• ICON engineered dual rate coil springs with match tuned 2.5 Aluminum Series reservoir shocks
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Adjustable track bar with PTFE lined FK bearings
• Less body roll than stock
• No drive shaft modifications needed

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHBushings Included: YesCoil Spring End 1 Type: OpenCoil Spring End 2 Type: OpenCoils Quantity Front: 2Coils Quantity Rear: 2Dual Rate Coil Springs: YesGrade Type: PerformanceMaximum Lift: 2.5Mounting Hardware Included: YesOEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required)Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.50″ BS / 12mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.25” BS / 13mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.50″ BS / 12mm OffsetShocks Included: YesSpring Color: BlackSpring Material: Steel
