Description

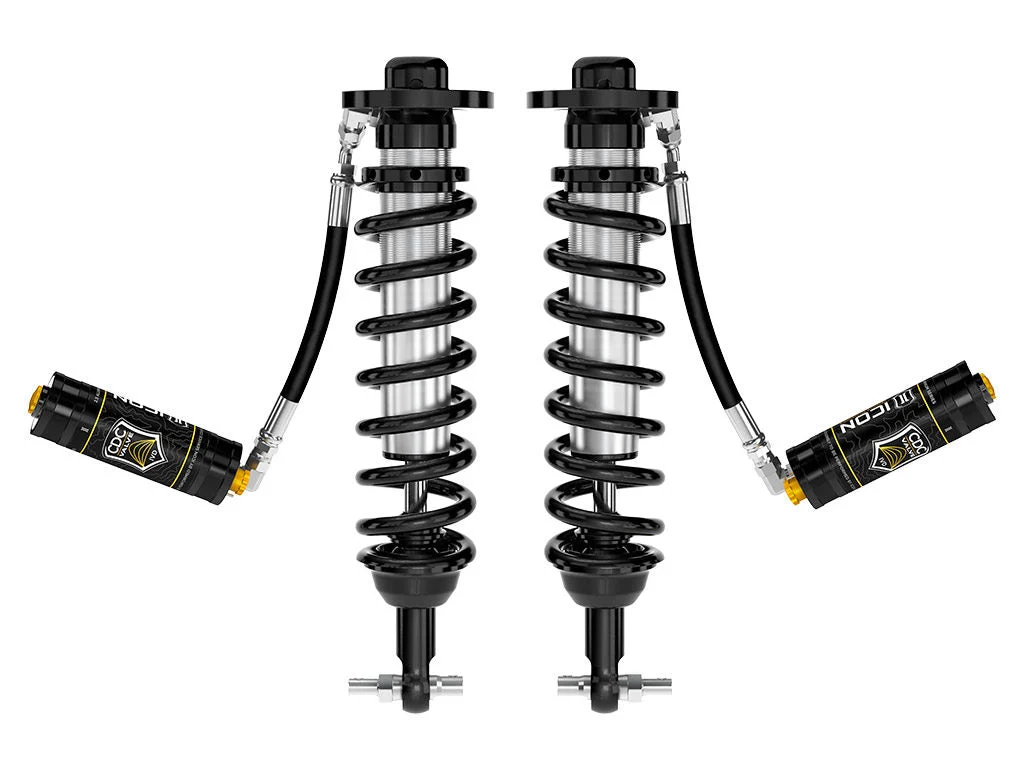

Icon 91823C – 2021+ Ford F-150 4WD 0-2.75in Front 2.5 Series Shocks VS RR CDCV Coilover Kit
2021-UP F150 4WD 0-2.75″ 2.5 VS RR CDCV COILOVER KIT
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s 2.5” body and increased piston area improves damping and remote reservoirs with CDCV allow for compression damping adjustment.
The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2021-2025 Ford F-150 4WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-2.75” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON’s larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2025 F-150 4WD.
- Increased wheel travel and ride quality over stock
- ICON engineered Eibach Springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8″ induction hardened, chrome plated shafts
- High strength alloy CNC machined lower bar pins
- FK rod end bearings for extended longevity and minimal deflection
- 100% Bolt-on – no cutting or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- External reservoirs to attain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for external tuneability of your shocks
- Adjustable 0-2.75″ lift height
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 97720CP – 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB CDCV PAIRAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5Coil Over Springs Included: YesCompressed Length: 18.29Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Adjustment Type: ManualDamping Type: OilDust Shield Included: NoExtended Length: 23.46Front Spring Rate: 550Gas Charged: YesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: BAR PINMaterial: AluminumMaximum Lift: 2.75Maximum Ride Height Raising Distance: 2.75Minimum Lift: 0OEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33″ x 11.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25″ Backspace / 6mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625″ Backspace / 16mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00” Backspace / 6mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf-Leveling: NoService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 257337 – 7/8 SHAFT 11.25 OAL, 7.00 TRAVELService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 191016 – 7.5″ FINNED RESI UPGRADE KITService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 611019 – COILOVER HARDWARE KIT PAIRService Parts: 252001 – 2.5 FIXED SPANNER WRENCHShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top of Upper Mount PlateShock Absorber Rod End Measuring Point: Flat on Bar PinSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 5.17Upper Mount Type: Mounting PlateValving Type: Digressive
