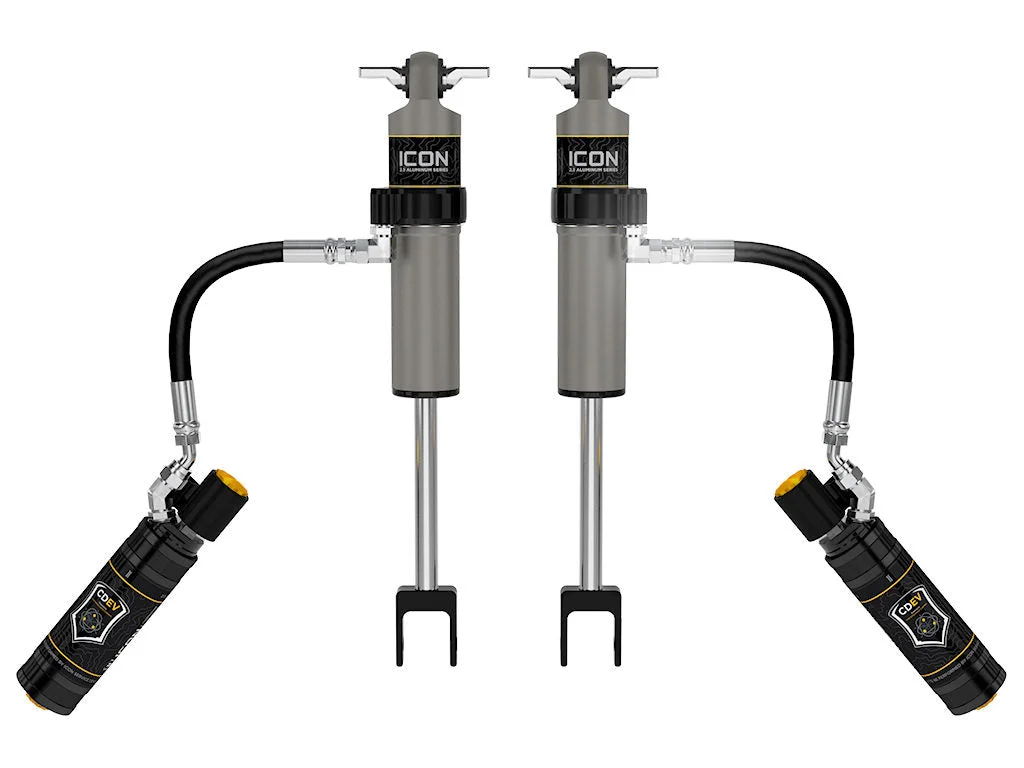

Icon 71707EP – 20-26 GM 2500/3500 HD 0-3.5in Front VS 2.5 RR CDEV Pair

Description

Icon 71707EP – 20-26 GM 2500/3500 HD 0-3.5in Front VS 2.5 RR CDEV Pair

20-26 GM 2500/3500 HD 0-3.5″ FRONT VS 2.5 RR CDEV PAIR

ICON V.S. 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

• Compatible with 0-3.5″ of front lift over stock
• Extended travel length requires aftermarket front upper control arms and provides maximum wheel travel
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Nitrogen charged monotube design with remote reservoir
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• Press in, bonded rubber bushing/bar pin assembly damps road vibration and provides OE factory type fitment
• 6061 aircraft grade aluminum CNC machined components
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: ActiveAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 73033 – 20-26 GM 2500/3500 HD TORSION KEY KITAdd-On Part: 77202 – 20-26 GM HD FRONT SPLASH GUARD KITAdd-On Part: 73002 – 20-26 GM 2500/3500 HD IIC INSTALL KITAdd-On Part: 77701EP – 20-26 GM 2500/3500 HD 0-1.5″ REAR VS 2.5 PB CDEV PAIRAdd-On Part: 73034 – 11-26 GM 2500/3500 HD XD TIE ROD KITAdjustable: YesAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBoot Included: NOBore Diameter: 2.25Compressed Length: 14.08Cylinder Color: GrayCylinder Diameter: 2.5Cylinder Material: AluminumDamping Adjustment Type: ElectronicDamping Type: OilExtended Length: 19.61External Reservoir: YesGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: ClevisMounting Hardware Included: YesReservoir Type: RemoteService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 611006 – 9/16 HD STEM BUSHING KITService Parts: 191016 – 7.5″ FINNED RESI UPGRADE KITService Parts: 257337 – 7/8 SHAFT 11.25 OAL, 7.00 TRAVELService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Flats on Bar PinShock Absorber Rod End Measuring Point: Center of Clevis HolesStroke Length Front: 5.53Tube Outside Diameter: 2.5Upper Mount Type: Bar PinValving Type: Digressive
