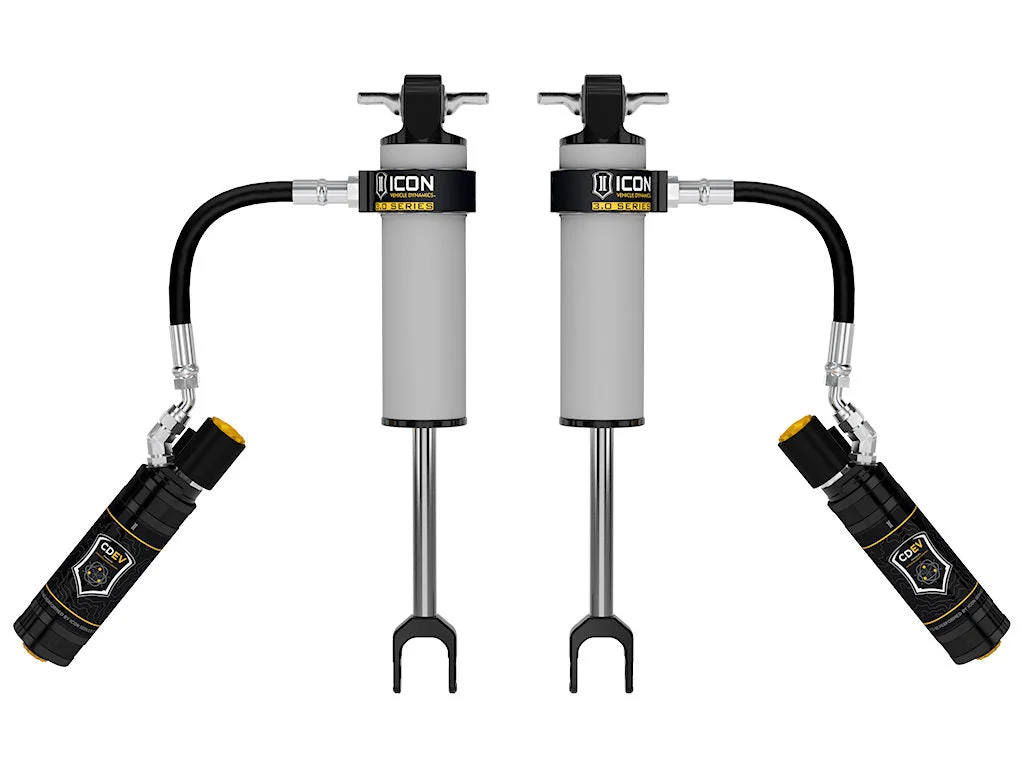

Icon 71704EP – 20-26 GM 2500/3500 HD 0-3.5in Front VS 3.0 RR CDEV Pair
20-26 GM 2500/3500 HD 0-3.5″ FRONT VS 3.0 RR CDEV PAIR
ICON V.S. 3.0 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.
The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
- Compatible with 0-3.5″ of front lift over stock
- Vehicle specific design and tuning for superior shock damping and control
- 3.0” Body diameter for increased oil volume and larger piston area
- Extended travel length requires ICON Delta Joint Pro front upper control arms and provides maximum wheel travel
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- Nitrogen charged monotube design with remote reservoir
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece linear compression/digressive rebound piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- Press in, bonded rubber bushing/bar pin assembly damps road vibration and provides OE factory type fitment
- 6061 aircraft grade aluminum CNC machined components
- Cerakoted steel cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- 100% Revalveable
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: ActiveAdd-On Part: 73033 – 20-26 GM 2500/3500 HD TORSION KEY KITAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 73002 – 20-26 GM 2500/3500 HD IIC INSTALL KITAdd-On Part: 77202 – 20-26 GM HD FRONT SPLASH GUARD KITAdd-On Part: 73034 – 11-26 GM 2500/3500 HD XD TIE ROD KITAdd-On Part: 71705EP – 20-26 GM 2500/3500 HD 0-2″ REAR VS 3.0 RR CDEV PAIRAdjustable: YesAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBoot Included: NOBore Diameter: 2.75Compressed Length: 14.02Cylinder Color: GrayCylinder Diameter: 3Cylinder Material: SteelDamping Adjustment Type: ElectronicDamping Type: OilExtended Length: 19.55External Reservoir: YesGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: ClevisMounting Hardware Included: YesReservoir Type: RemoteService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Flats on Bar PinShock Absorber Rod End Measuring Point: Center of Clevis HolesStroke Length Front: 5.53Tube Outside Diameter: 3Upper Mount Type: Bar PinValving Type: Linear/Digressive
