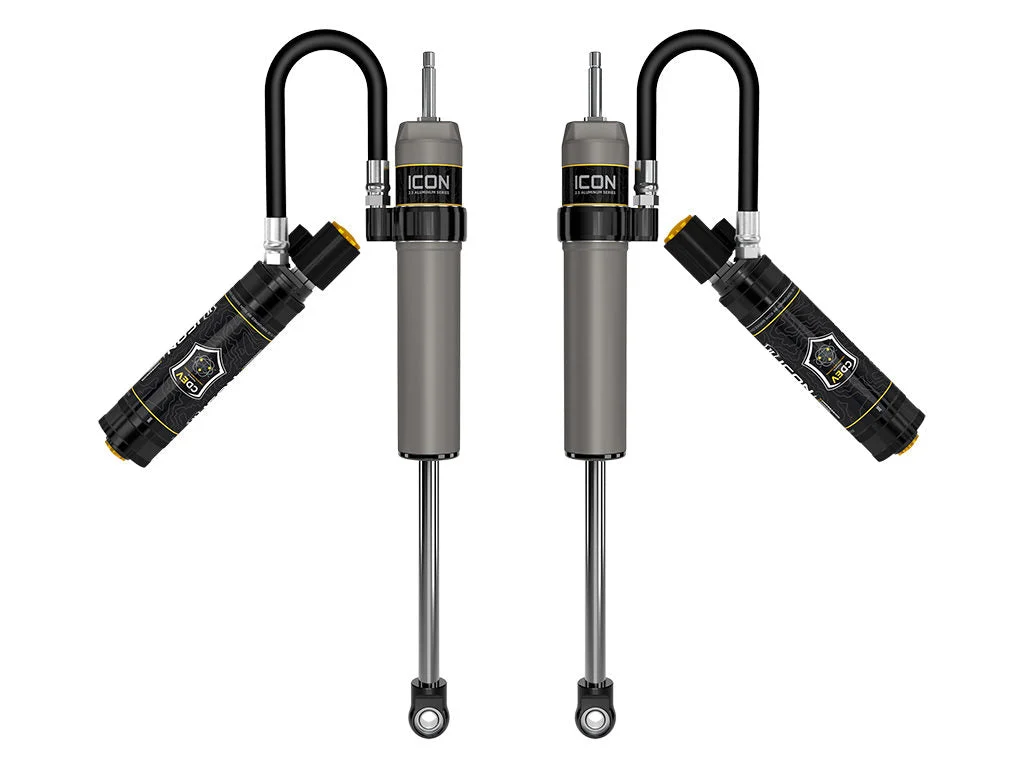

Icon 67800EP – 2017+ Ford F-250/F-350 Super Duty 4WD 0-2.5in Front 2.5 Series Shocks VS RR CDEV – Pair

Description

Icon 67800EP – 2017+ Ford F-250/F-350 Super Duty 4WD 0-2.5in Front 2.5 Series Shocks VS RR CDEV – Pair

17-25 FSD 4WD 0-2.5″ FRONT 2.5 VS RR CDEV PAIR

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

• ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: ActiveAdd-On Part: 191207 – IIC CONTROLER ALT FUNCTION PLUG KITAdd-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)Add-On Part: 93500 – 15-25 F150 & 17-22 FSD IIC INSTALL KITAdd-On Part: 93502 – 23-25 FSD IIC INSTALL KITAdd-On Part: 611003 – 2.5 RESI DOUBLER MOUNT 7.5″ KITAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdjustable: YesAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBoot Included: NOBore Diameter: 2.25Compressed Length: 14.48Cylinder Color: GrayCylinder Diameter: 2.5Cylinder Material: AluminumDamping Adjustment Type: ElectronicDamping Type: OilExtended Length: 22.81External Reservoir: YesGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: EyeletMounting Hardware Included: YesReservoir Type: RemoteService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 191016 – 7.5″ FINNED RESI UPGRADE KITService Parts: 257338 – 7/8 SHAFT 12.25 OAL, 8.00 TRAVELService Parts: 611006 – 9/16 HD STEM BUSHING KITService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder of StemShock Absorber Rod End Measuring Point: Center of EyletStroke Length Front: 8.33Tube Outside Diameter: 2.5Upper Mount Type: StemValving Type: Digressive
