Description

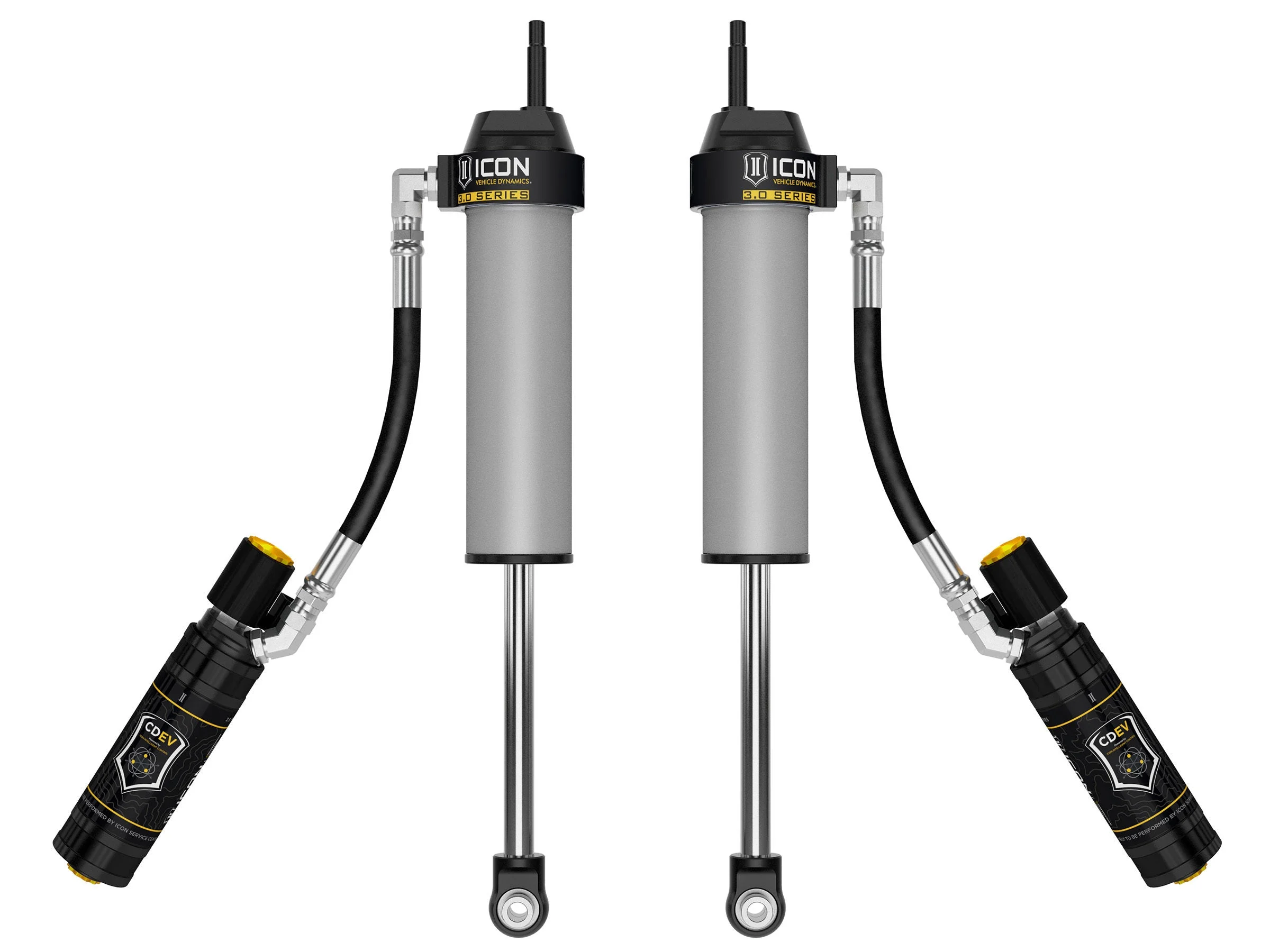

Icon 61802EP – 2017-2026 Ford F-250/F-350 Super Duty 4WD, 0-3” Lift, Front, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDEV, Pair
17-26 F250/F350 4WD 0-3″ FRONT 3.0 VS RR CDEV PAIR
ICON Vehicle Specific (V.S.) 3.0 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series shocks offer improved heat dissipation and resistance to shock fade under hard use. Like all ICON shock absorbers, V.S. 3.0 Series shocks are 100% rebuildable and 100% revalveable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
- Compatible with 0-3″ of front lift over stock
- Vehicle specific design and tuning for superior shock damping and control
- 3.0” Body diameter for increased oil volume and larger piston area
- Nitrogen charged monotube design with remote reservoir
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece linear compression/digressive rebound piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- 6061 aircraft grade aluminum CNC machined components
- Cerakoted steel cylinders offer excellent corrosion resistance and consistent finish
- Fully rebuildable and revalveable
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: ActiveAdd-On Part: 191207 – IIC CONTROLER ALT FUNCTION PLUG KITAdd-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)Add-On Part: 93500 – 15-25 F150 & 17-22 FSD IIC INSTALL KITAdd-On Part: 93502 – 23-25 FSD IIC INSTALL KITAdd-On Part: 611003 – 2.5 RESI DOUBLER MOUNT 7.5″ KITAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 61804EP – 17-26 F250/F350 4WD 0-3″ 3.0 VS RR CDEV REARAdd-On Part: 61720E – 17-23 F250/F350 4WD 2.5-3″ 2.5 VS RR CDEV BOLT IN CO CONVERSION KIT W/ CAMSAdd-On Part: 61723E – 23-25 F250/F350 4WD 2.5-3″ 2.5 VS RR CDEV BOLT IN CO CONVERSION KITAdd-On Part: 61800E – 17-26 F250/F350 4WD 2.5-3″ 3.0 VS RR CDEV BOLT IN CO CONVERSION KIT W/ CAMSAdjustable: YesAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBoot Included: NOBore Diameter: 2.75Compressed Length: 14.54Cylinder Color: GrayCylinder Diameter: 3Cylinder Material: SteelDamping Adjustment Type: ElectronicDamping Type: OilExtended Length: 22.87External Reservoir: YesGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: EyeletMounting Hardware Included: YesReservoir Type: RemoteService Parts: 611006 – 9/16 HD STEM BUSHING KITService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder of StemShock Absorber Rod End Measuring Point: Center of EyletStroke Length Front: 8.33Tube Outside Diameter: 3Upper Mount Type: StemValving Type: Linear/Digressive
