Description

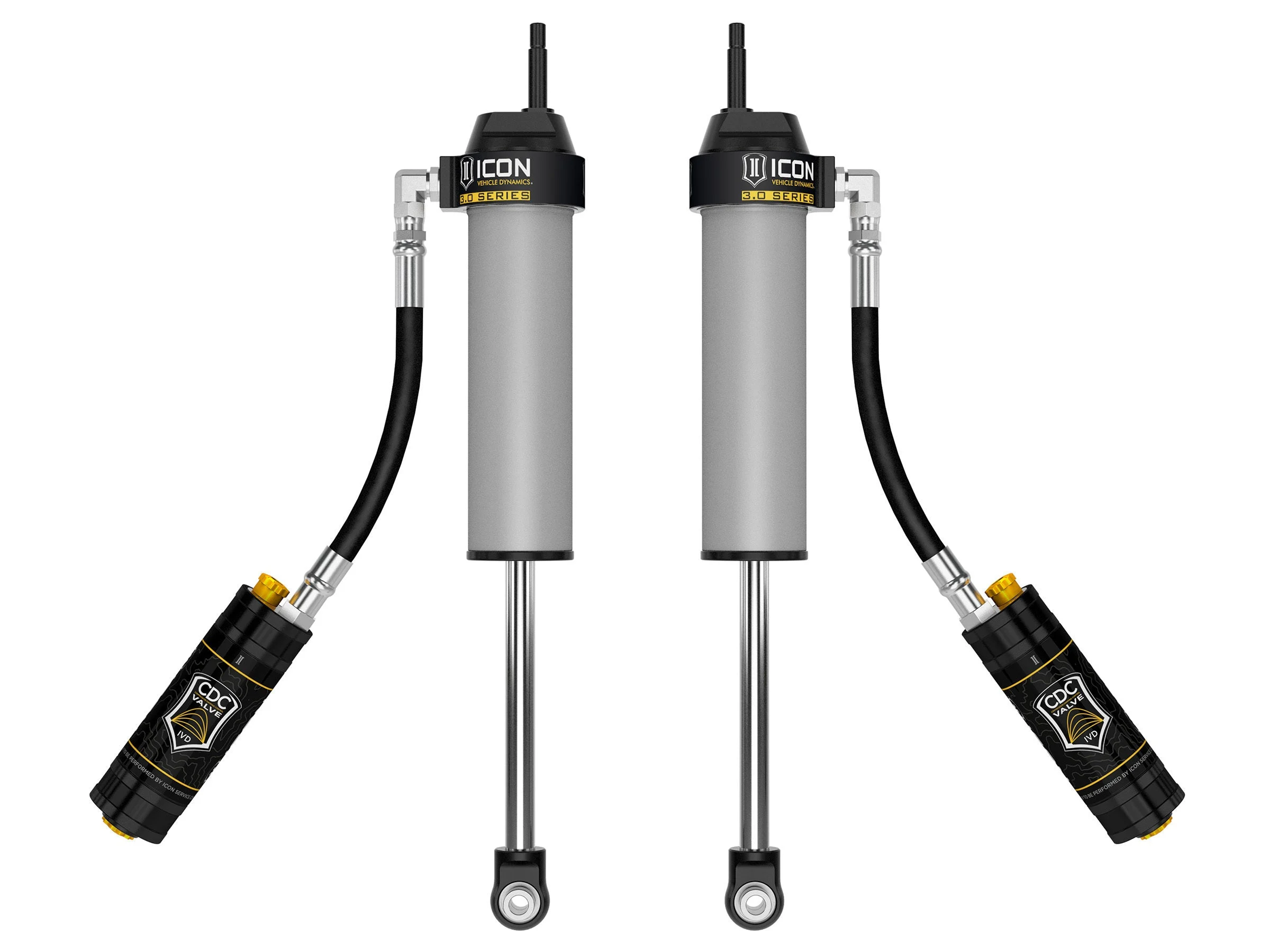

Icon 61802CP – 2005-2026 Ford Super Duty 4WD, 0-2.5” Lift, Front, V.S. 3.0 Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair
05-26 F250/F350 4WD 0-3″ FRONT 3.0 VS RR CDCV PAIR
ICON Vehicle Specific (V.S.) 3.0 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series shocks offer improved heat dissipation and resistance to shock fade under hard use. Like all ICON shock absorbers, V.S. 3.0 Series shocks are 100% rebuildable and 100% revalveable. ICON’s exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks, or mobbing across the desert at full throttle.
- Compatible with 0-3″ of front lift over stock
- Vehicle specific design and tuning for superior shock damping and control
- 3.0” Body diameter for increased oil volume and larger piston area
- Nitrogen charged monotube design with remote reservoir
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- ICON’s CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece linear compression/digressive rebound piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- 6061 aircraft grade aluminum CNC machined components
- Cerakoted steel cylinders offer excellent corrosion resistance and consistent finish
- Fully rebuildable and revalveable
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdjustable: YesAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBoot Included: NOBore Diameter: 2.75Cylinder Color: GrayCylinder Diameter: 3Cylinder Material: AluminumDamping Adjustment Type: ManualDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: EYELETMounting Hardware Included: YesReservoir Type: RemoteService Parts: 191016 – 7.5″ FINNED RESI UPGRADE KITService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 257338 – 7/8 SHAFT 12.25 OAL, 8.00 TRAVELService Parts: 611006 – 9/16 HD STEM BUSHING KITService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder of StemShock Absorber Rod End Measuring Point: Center of EyletTube Outside Diameter: 3Upper Mount Type: StemValving Type: Linear/Digressive
