Description

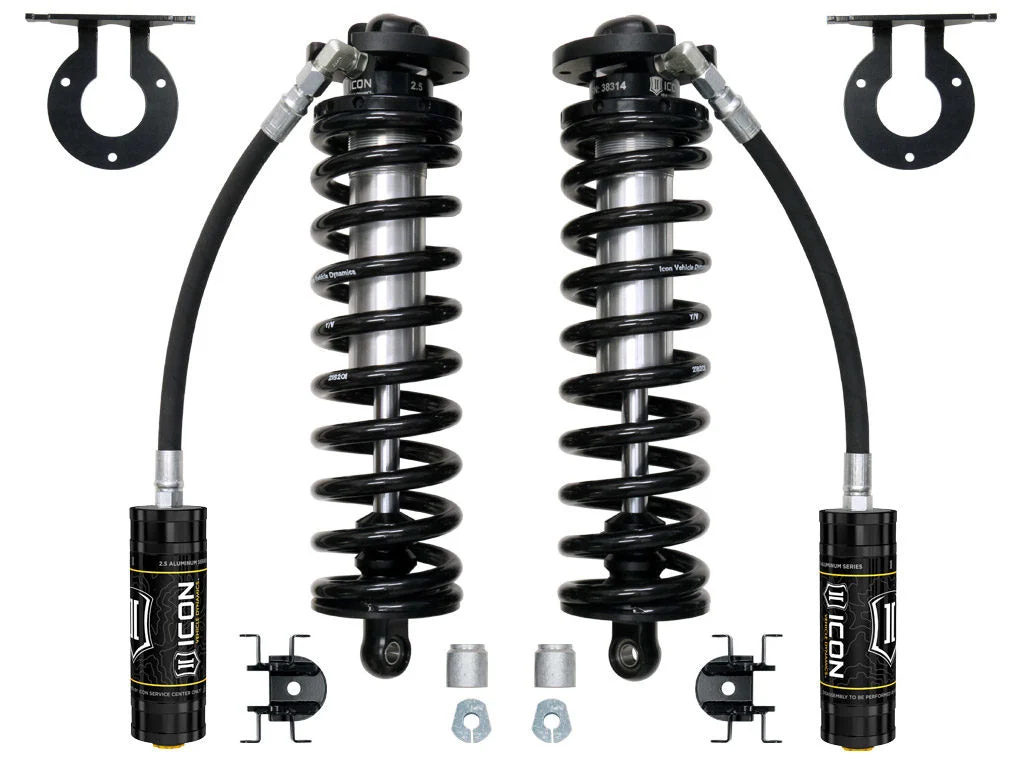

Icon 61720 – 2005+ Ford F-250/F-350 Super Duty 4WD 2.5-3in 2.5 Series Shocks VS RR Bolt-In Conversion Kit
05-23 F250/F350 4WD 2.5-3″ 2.5 VS RR BOLT IN CO CONVERSION KIT W/ CAMS
ICON’s 2.5 Series Remote Reservoir Bolt-In Coilover Kit will add a new level of performance and adjustability to the 05-23 Ford Super Duty. Increasing the overall damping ability while allowing for user-defined ride height adjustment.
ICON’s 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2023 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5″ Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line – meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers provide 2.5-3″ or 3.25-3.75″ of lift, depending on year model of truck
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock body with 7/8″ shaft
- Eibach coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
Cylinder Material: SteelDamping Type: OilDust Shield Included: NoExtended Length: 19.71Front Spring Rate: 400Gas Charged: yesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: EyeletMaterial: AluminumMaterial: SteelMaximum Lift: 3Maximum Ride Height Raising Distance: 3Minimum Lift: 2.5OEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 35″ x 12.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.25” Backspace / 6mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25” Backspace / 6mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00” Backspace / 6mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf-Leveling: NoService Parts: 191016 – 7.5″ FINNED RESI UPGRADE KITService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 257337 – 7/8 SHAFT 11.25 OAL, 7.00 TRAVELService Parts: 611019 – COILOVER HARDWARE KIT PAIRService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Shaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top of Upper Mount PlateShock Absorber Rod End Measuring Point: Center of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 6.96Upper Mount Type: Mounting PlateValving Type: DigressiveAAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 64038 – 17-25 FSD ADJ TRACK BAR KITAdd-On Part: 198001 – BILLET SPANNER WRENCH KITAdd-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KITAdd-On Part: 64039 – 08-25 FSD TRACK BAR BUMP STEER BRACKET KITAdd-On Part: 61111 – 17-25 FSD FRONT 2.5″ EXTENDED SS BRAKE LINE KITAdd-On Part: 64035 – 05-16 FSD ADJ TRACK BAR W/FK ROD ENDAdjustable Compression: NoAdjustable Damping: NOAdjustable Rebound: NoAdjustable Ride Height: YesAlignment Cams Included: YesAssembled: YesBody Diameter: 2.5Coil Over Springs Included: YesCompressed Length: 12.75Cylinder Color: SilverCylinder Finish: Cadmium Plated
