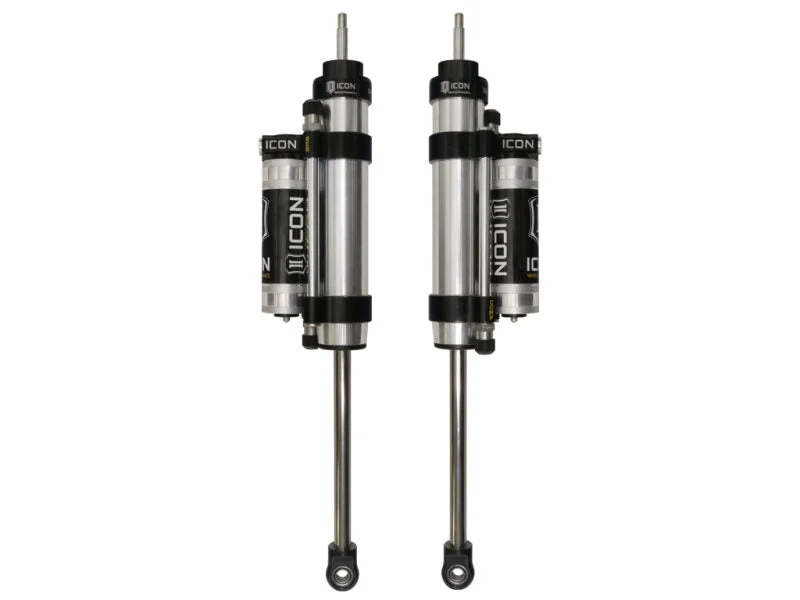

Icon 59920P – 2007+ Toyota Tundra Rear 2.5 Omega Series Shocks VS PB – Pair

Description

Icon 59920P – 2007+ Toyota Tundra Rear 2.5 Omega Series Shocks VS PB – Pair

07-21 TUNDRA REAR 2.5 VS OMEGA PB PAIR

2007-2021 TUNDRA REAR 2.5 VS OMEGA PIGGYBACK SHOCK PAIR

ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.

• ICON’s Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
• Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
• Bypass tubes are replaceable in the event of damage
• Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Adjustable: YesBoot Included: NOBore Diameter: 2.25Cylinder Material: AluminumExternal Reservoir: YesGas Charged: YesLower Mount Type: EYELETMounting Hardware Included: YesService Parts: 611006 – 9/16 HD STEM BUSHING KITService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 257340 – 7/8 SHAFT 14.25 OAL, 10.00 TRAVELService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Shock Absorber Body End Measuring Point: Shoulder of StemShock Absorber Rod End Measuring Point: Center of EyletTube Outside Diameter: 2.5Upper Mount Type: Stem
