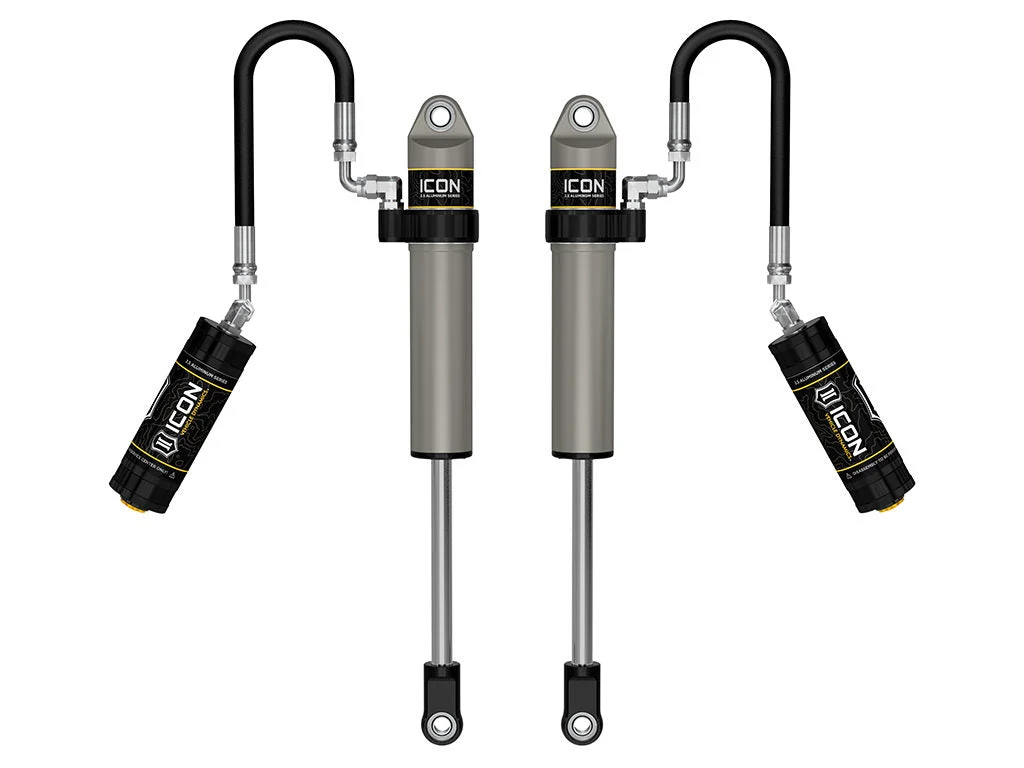

Icon 59706P – Toyota S2 Secondary 2.5 Series Shocks VS RR – Pair

Description

Icon 59706P – Toyota S2 Secondary 2.5 Series Shocks VS RR – Pair

TOYOTA S2 SECONDARY 2.5 VS RR PAIR

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs, damping adjustability, and are 100% rebuildable/revalveable.

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.

• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• 100% Rebuildable
• 100% Revalveable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)Adjustable: NoAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBoot Included: NOBore Diameter: 2.25Compressed Length: 16.05Cylinder Color: GrayCylinder Diameter: 2.5Cylinder Material: AluminumDamping Type: OilExtended Length: 23.88External Reservoir: YesFully Open Length: 23.86Gas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: EYELETMounting Hardware Included: YesReservoir Type: RemoteService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 257339 – 7/8 SHAFT 13.25 OAL, 9.00 TRAVELService Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 191016 – 7.5″ FINNED RESI UPGRADE KITService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Shaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Center of EyletShock Absorber Rod End Measuring Point: Center of EyletStroke Length Front: 7.83Tube Outside Diameter: 2.5Upper Mount Type: EYELETValving Type: Digressive
