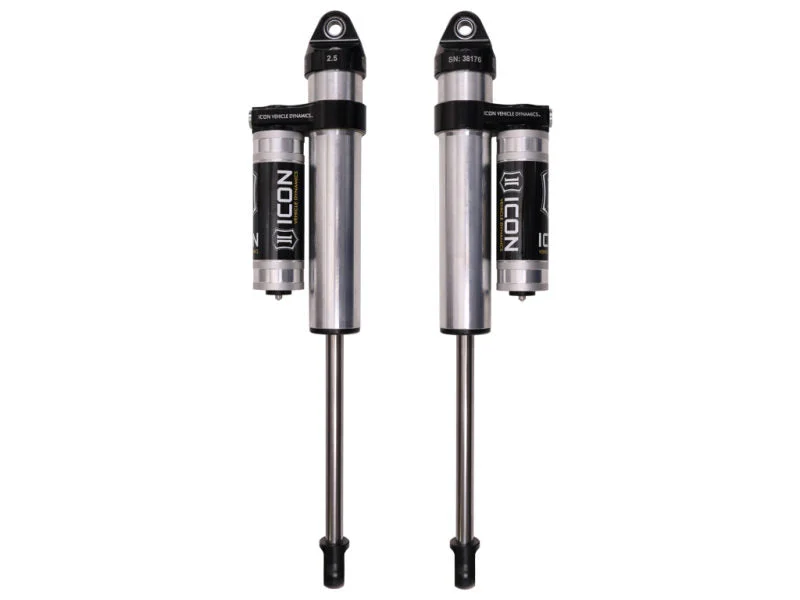

Icon 59704P-CB – 2007+ Toyota Tundra Secondary 2.5 Custom Shocks VS PB – Pair

Description

Icon 59704P-CB – 2007+ Toyota Tundra Secondary 2.5 Custom Shocks VS PB – Pair

07-21 TUNDRA SECONDARY 2.5 VS PB PAIR

2007-2021 TOYOTA TUNDRA SECONDARY 2.5 VS PIGGYBACK SHOCK PAIR

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.

• CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 6061 aircraft grade aluminum CNC machined components
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• Nitrogen charged monotube design with piggyback reservoir
• 100% Rebuildable
• 100% Revalveable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)Adjustable: NOBoot Included: NOBore Diameter: 2.25Cylinder Color: SilverCylinder Material: SteelDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceLower Mount Type: EYELETMounting Hardware Included: YesService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KITService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 257339 – 7/8 SHAFT 13.25 OAL, 9.00 TRAVELService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 252001 – 2.5 FIXED SPANNER WRENCHShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Center of EyletShock Absorber Rod End Measuring Point: Center of EyletTube Outside Diameter: 2.5Upper Mount Type: EYELET
