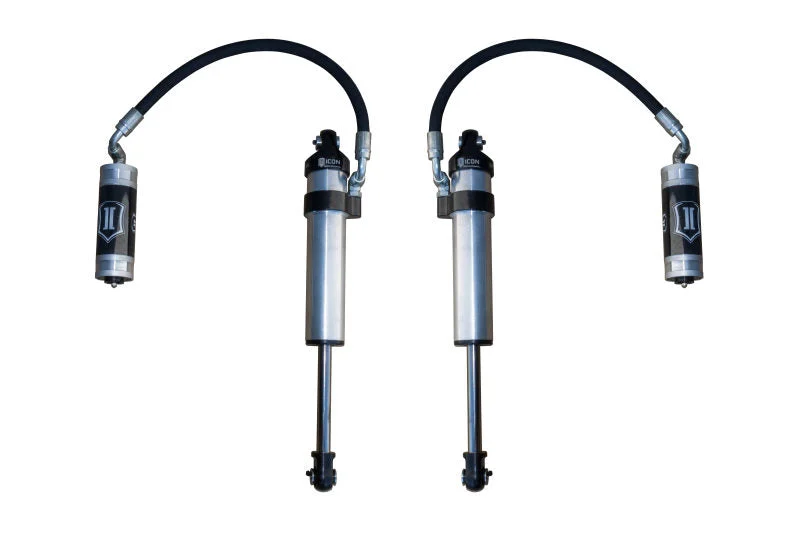

Icon 59703P-CB – Toyota Secondary Long Travel 2.5 Series Shocks RR – Pair

Description

Icon 59703P-CB – Toyota Secondary Long Travel 2.5 Series Shocks RR – Pair

TOYOTA SECONDARY LONG TRAVEL 2.5 RR PAIR

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs, damping adjustability, and are 100% rebuildable/revalveable.

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.

• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
• PTFE lined spherical bearings and application specific mounting hardware
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• 7/8” diameter induction hardened, chrome plated shock shaft
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Rebuildable
• 100% Revalveable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdjustable: NoAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBoot Included: NOBore Diameter: 2.25Compressed Length: 15.03Cylinder Color: GrayCylinder Diameter: 2.5Cylinder Material: AluminumDamping Type: OilExtended Length: 24.36External Reservoir: YesGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: EYELETMounting Hardware Included: YesReservoir Type: RemoteService Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 191016 – 7.5″ FINNED RESI UPGRADE KITService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 257339 – 7/8 SHAFT 13.25 OAL, 9.00 TRAVELService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Shaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Center of EyletShock Absorber Rod End Measuring Point: Center of EyletStroke Length Front: 9.33Tube Outside Diameter: 2.5Upper Mount Type: EYELETValving Type: Digressive
