Description

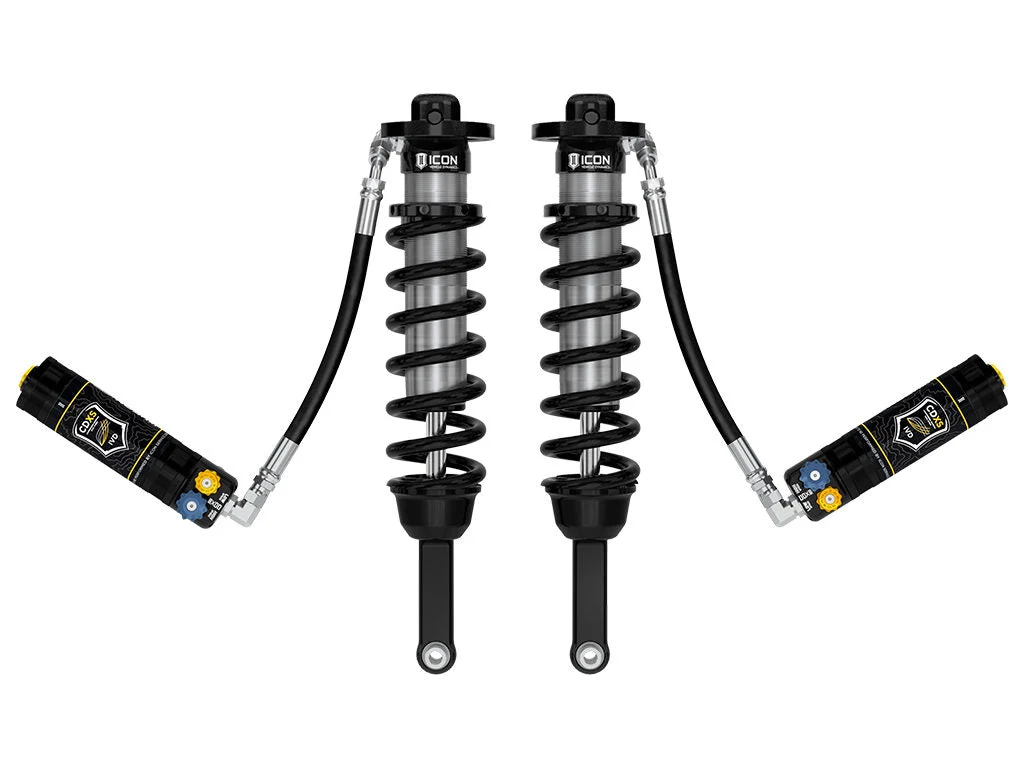

Icon 58730X-700 – 2005-2023 Toyota Tacoma, Front, 0-3.5″/0-2.75″ Lift, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDXS, 700 lbs/in Coils, Pair
05-23 TACOMA 2.5 VS RR CDXS COILOVER KIT 700LB
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
- Height-adjustable coilovers offer 0-3.5″ or 0-2.75″ of lift height adjustment depending on year model
- Vehicle specific tuned for superior shock damping and control
- Kit Includes Sway bar relocation brackets
- Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
- CAD-plated threaded body
- Billet aluminum upper mount
- 5/8″ PTFE-lined spherical bearings
- Completely re-buildable
- Hose Length Optimized for Increased Fluid Transfer
- External Reservoirs Ensures Maximum Cooling
- ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: PassiveAdd-On Part: 191003 – 05-23 TACOMA 2.5 VS RR CDCV COILOVER KITAdd-On Part: 198001 – 05-23 TACOMA 2.5 VS RR CDCV COILOVER KITAdd-On Part: 51045 – 05-23 TACOMA 2.5 VS RR CDCV COILOVER KITAdd-On Part: 252012 – 05-23 TACOMA 2.5 VS RR CDCV COILOVER KITAdd-On Part: 198000 – 05-23 TACOMA 2.5 VS RR CDCV COILOVER KITAdd-On Part: 51051 – 05-23 TACOMA 2.5 VS RR CDCV COILOVER KITAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5Coil Over Springs Included: YesCompressed Length: 17.42Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Adjustment Type: Dual Speed/ManualDamping Type: OilDust Shield Included: NoExtended Length: 22.17Front Spring Rate: 700Gas Charged: yesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMaterial: SteelMaterial: AluminumMaximum Lift: 3.5Maximum Ride Height Raising Distance: 3.5Minimum Lift: 0OEM Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required)Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5” Backspace / 0mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5” Backspace / 0mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf-Leveling: NoService Parts: 252001 – 2.5 FIXED SPANNER WRENCHService Parts: 257301 – 7/8 SHAFT 10.25 OAL, 6.00 TRAVELService Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OILService Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITService Parts: 191016 – 7.5″ FINNED RESI UPGRADE KITService Parts: 611067 – TACOMA/FJ/4RNR LOWER CO BRG/SPCR KITService Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0Service Parts: 611019 – COILOVER HARDWARE KIT PAIRShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top of Upper Mount PlateShock Absorber Rod End Measuring Point: Center of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 4.76Upper Mount Type: Mounting PlateValving Type: Digressive
