Description

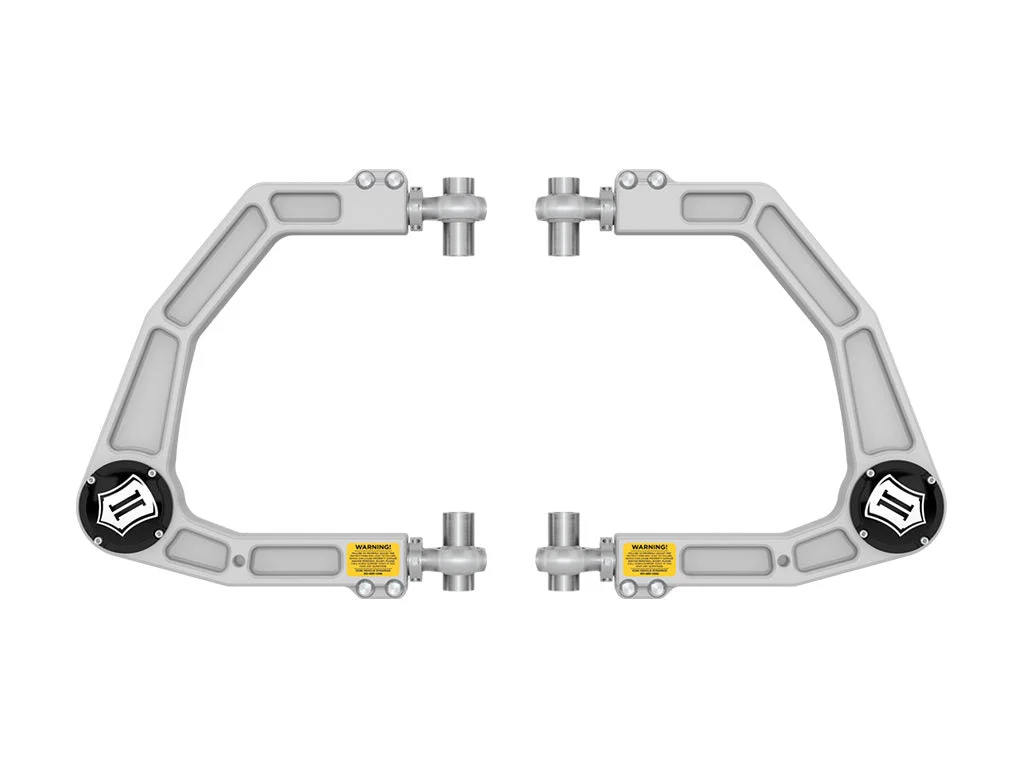

Icon 58552DJ – 2024+ Toyota Tacoma Billet UCA DJ Pro Kit
24-26 TACOMA/24-26 LC250/24-26 GX550/25-26 T4R BILLET UCA DJ PRO KIT
ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a uniball.
ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON’s innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
- CNC machined 6061 billet aluminum construction with satin anodized finish
- Corrects suspension geometry and allows for proper wheel alignment on vehicles with up to 3” of lift
- Quick, precise, on-vehicle adjustment for both caster and camber
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- Built in O-ring sealed dust cover cap
AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Add-On Part: 191013 – NIPPLE GREASING ADAPTER KITAdd-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCHAdjustable: YesAdjustable Control Arm: YesAttachments Included: NoBall Joint Included: YesBall Joint Mounting Type: Press InBall Joint Stud Type: ThreadedBushing Color: SilverBushing Material: Rod End BearingBushings Included: YesColor: GrayColor: SilverConstruction: BilletControl Arm Color: GrayControl Arm Construction: BilletControl Arm Material: AluminumEnd 1 Type: Rod End BearingEnd 2 Type: BALL JOINTFinish: AnodizedGrade Type: PerformanceGrease Fitting Included: YesMaterial: AluminumMounting Bracket Included: NoMounting Hardware Included: YesOEM Wheels & Tires Fitment: YesPre-Assembled: YesPre-Greased: YesQuantity: PairRecommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)Recommended Aftermarket Wheels: ICON Alloys – 18″ x 9″ with 6.6″ Backspace / 40mm OffsetRecommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm OffsetReinforced: YesSet: YesSuspension Grade Type: PerformanceSuspension Type: Spring
