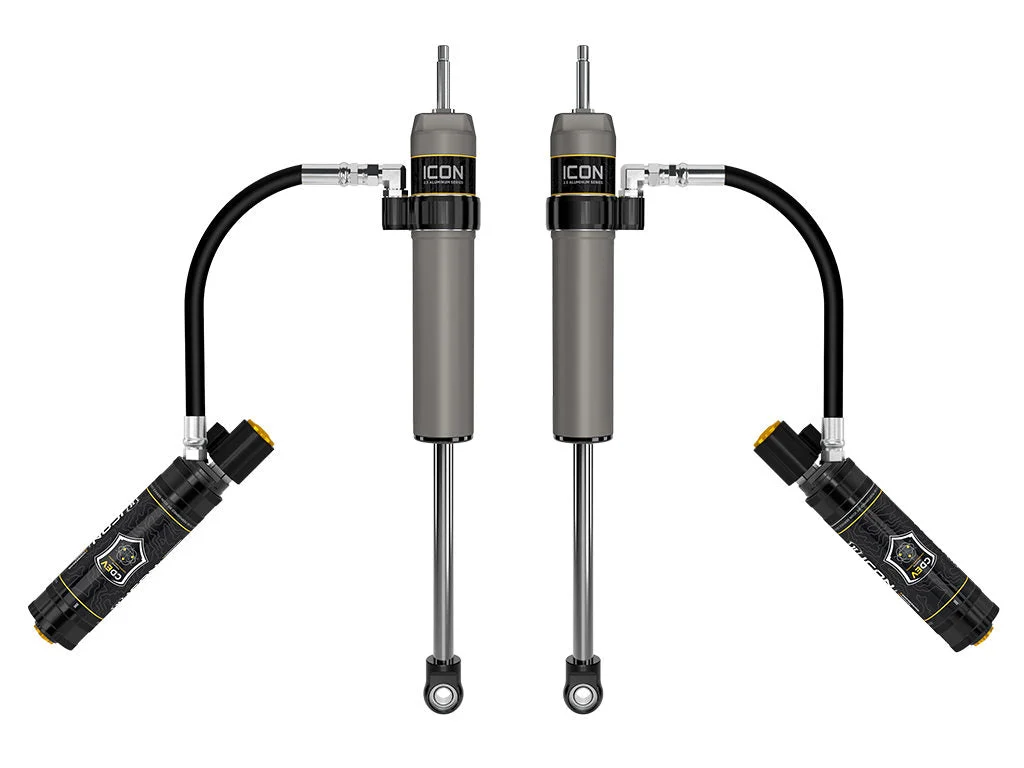

Icon 57841EP – 22-23 Toyota Tundra 3.5in Rear 2.5 VS CDEV RR PAIR

Description

Icon 57841EP – 22-23 Toyota Tundra 3.5in Rear 2.5 VS CDEV RR PAIR

22-24 TUNDRA 3.5″ REAR 2.5 VS CDEV RR PAIR

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs with CDEV and are 100% rebuildable/revalveable.

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

• ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

AAP_UDA_12: EAAAP_UDA_22: 1AAP_UDA_4: 55Active or Passive Suspension: ActiveAdd-On Part: 58771E – 22-26 TUNDRA 2.5 VS RR CDEV 6″ COILOVER KITAdd-On Part: 53508 – 22-26 TUNDRA/23-25 SEQUOIA IIC INSTALL KITAdd-On Part: 252012 – -4 TO -10 HOSE SHIELD KITAdd-On Part: 56100 – 07-14 FJ/03-26 4RUNNER/22-26 TUNDRA/23-25 SEQUOIA REAR SHIN GUARDSAdjustable: YesAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBoot Included: NOBore Diameter: 2.25Compressed Length: 17.08Cylinder Color: GreyCylinder Diameter: 2.5Cylinder Material: AluminumDamping Adjustment Type: ElectronicDamping Type: OilExtended Length: 27.93External Reservoir: YesGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: EyeletMounting Hardware Included: YesReservoir Type: RemoteService Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KITShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder of StemShock Absorber Rod End Measuring Point: Center of EyletStroke Length Rear: 10.86Tube Outside Diameter: 2.5Upper Mount Type: StemValving Type: Digressive
